KIT-DW-305 Wireless Classroom Audio Kit
A complete classroom sound reinforcement kit built around the DW-305 infrared amplifier, with room for two infrared microphones and a page-flipping presenter. The 2 × 70 W amplifier is sized for teaching rooms up to 200 m² and supports up to four speakers.
- Three-channel infrared design runs two microphones and one presenter remote at the same time, with no frequency pairing.
- 2 × 70 W at 8 Ω (2 × 130 W at 4 Ω) with speaker outputs for up to four loudspeakers.
- Built-in USB digital sound card and USB camera input for recording, video conferencing and hybrid lessons.
Overview
Key features
- Three-channel infrared design runs two microphones and one presenter remote at the same time, with no frequency pairing.
- 2 × 70 W at 8 Ω (2 × 130 W at 4 Ω) with speaker outputs for up to four loudspeakers.
- Built-in USB digital sound card and USB camera input for recording, video conferencing and hybrid lessons.
- IPM power management wakes microphones on movement and puts them to sleep after one second of inactivity.
- Two RJ45 sensor ports accept up to four remote infrared sensors for difficult room layouts.
- Feedback suppression and DSP tone adjustment are built into the amplifier.
The kit is assembled from matched Seekika Audio components, so the receiver, microphones, charging cradle and speakers arrive as one tested configuration rather than separate parts.
Each kit is configured before delivery for the target room size and microphone mix. Contact Seekika Audio with the room dimensions and ceiling type for a configuration and deployment plan.

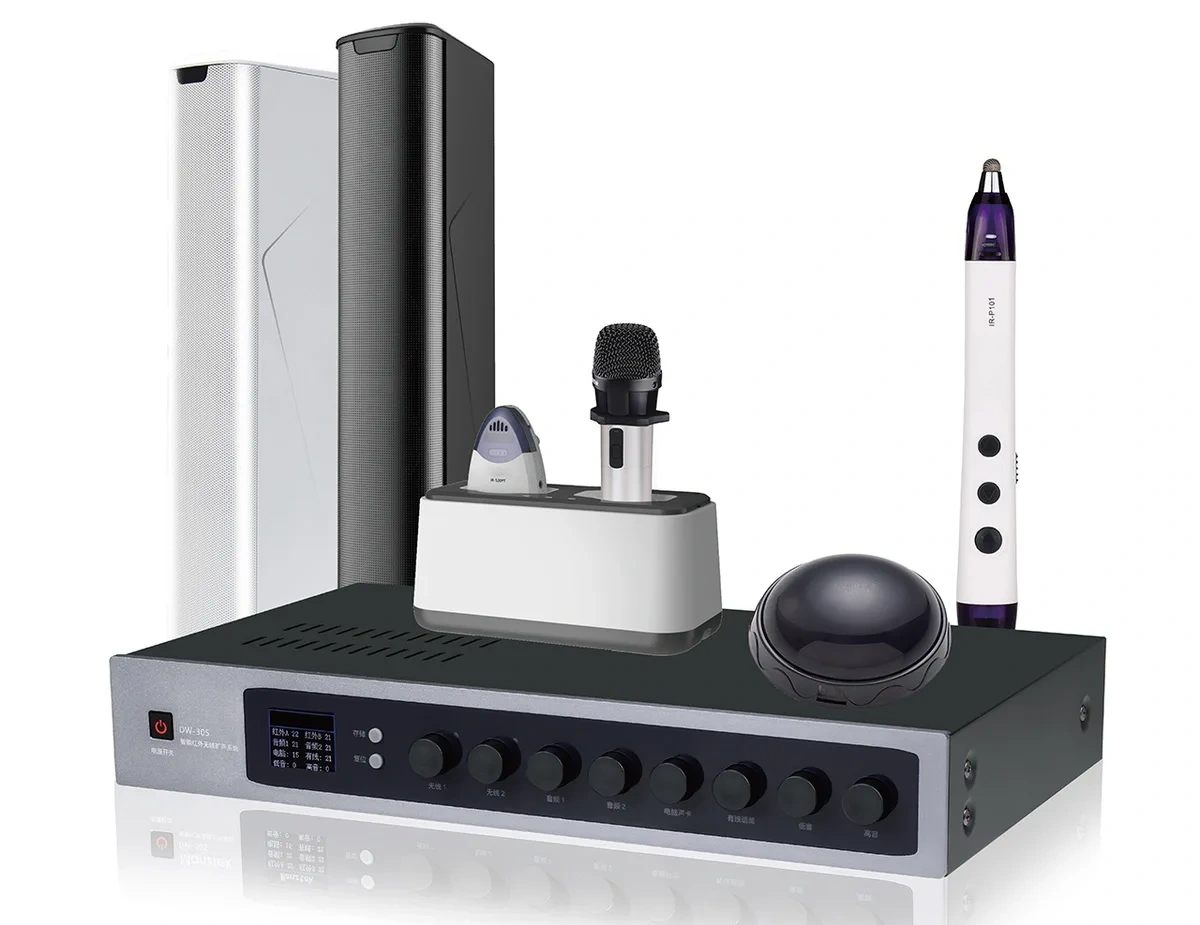

What’s in the box

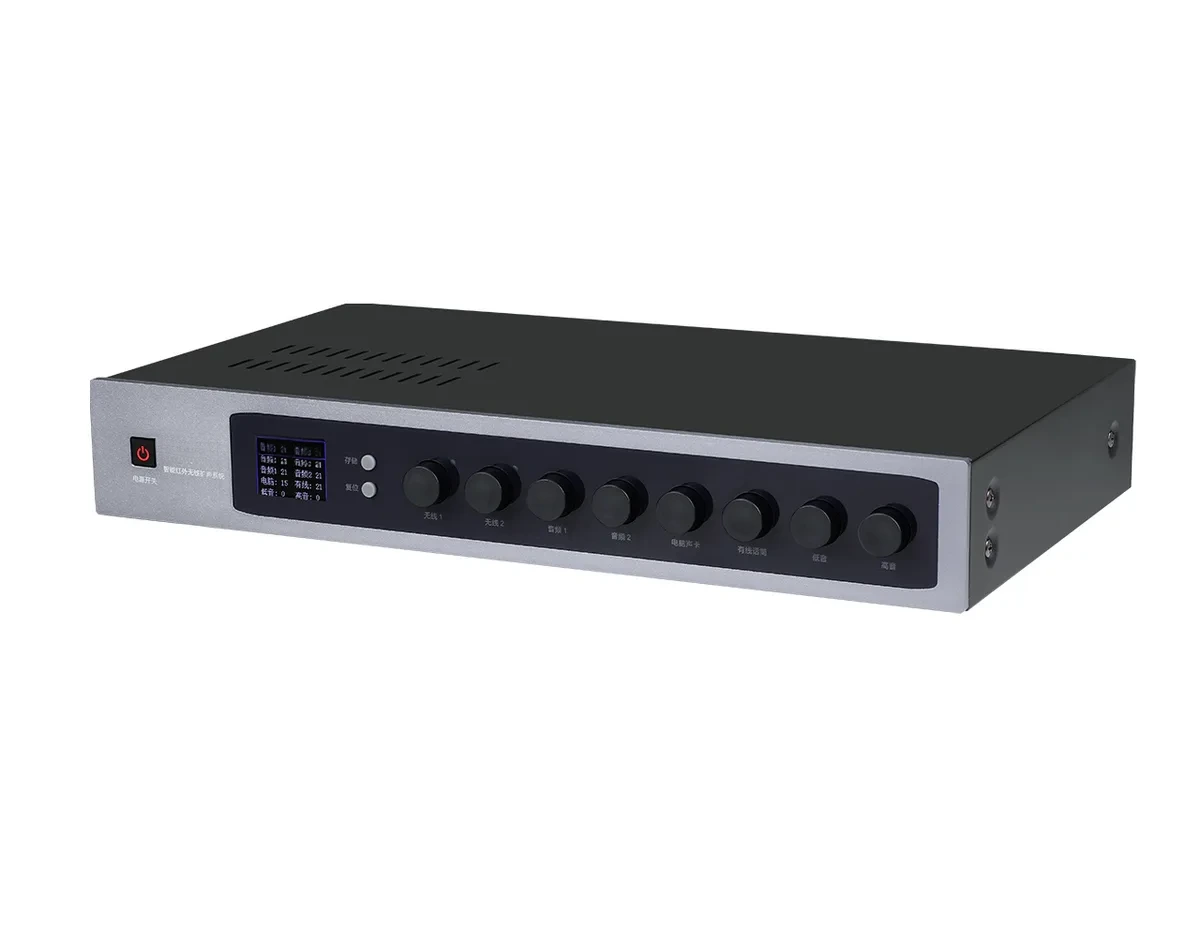

- DW-305 infrared wireless microphone amplifier
- Infrared handheld and/or pendant microphones as configured
- Charging cradle for the supplied microphones
- Passive classroom speakers as configured
- Power, speaker and audio connection cables
- Installation and user guide
Specifications
Audio & wireless
| Infrared channels | 3 channels |
|---|---|
| Selectable channels | 3 |
| Frequency response | 50 Hz–20 kHz ±3 dB |
| THD | <0.05% |
| Signal-to-noise ratio | ≥78 dB (MIC1.2), ≥80 dB (LINE), ≥98 dB (IR MIC) |
| Dynamic range | 100 dB |
| Frequency stability | ±0.005%(-10℃-40℃) |
Power & charging
| Rated power | (8Ω) 2 × 70 W; (4Ω) 2 × 130 W |
|---|---|
| Input sensitivity | 20 mV(MIC1.2), 700 mV(LINE) |
| Input impedance | 22KΩ(MIC1.2), 390Ω(LINE) |
Connectivity & control

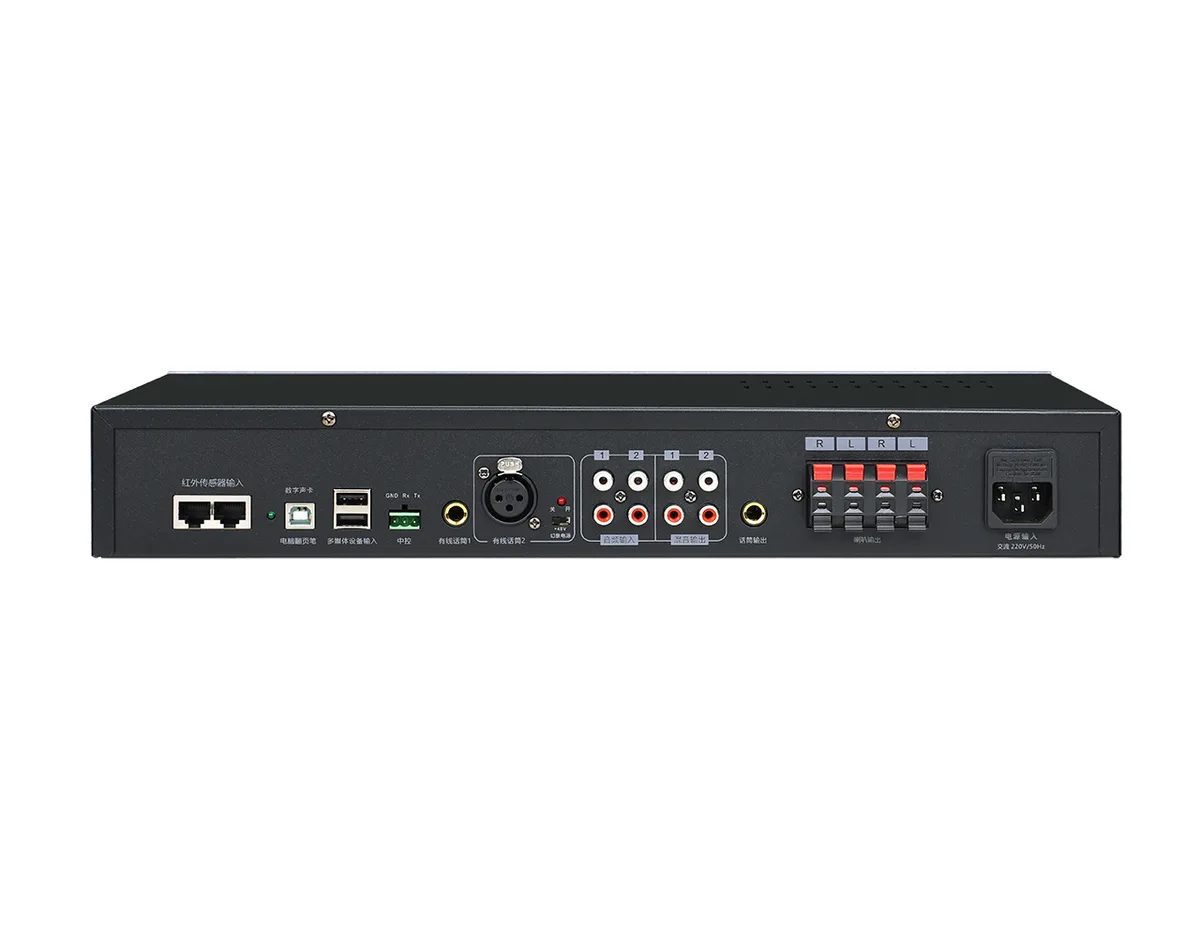

| Inputs | 2 × RJ45 ports(connect Max.4 IR sensors); 2 × audio inputs; 1 × 1/4"MIC in; 1 × (48 V phantom power)XLR input; 1 × USB digital sound card; 2 × USB multimedia interfaces; |
|---|---|
| Outputs | 2 × mixing audio output; 1 × Mic out; 4 sets of speaker ports |
Coverage & installation
| System coverage | Up to 200 m² |
|---|
Compatibility & included
| Receiver / amplifier | DW-305 infrared wireless microphone amplifier |
|---|
Applications
Planning a classroom or campus project?
Share your floor plan and room schedule — we will recommend microphone coverage, speaker placement and kit configuration.
Frequently Asked Questions
Which rooms is the KIT-DW-305 designed for?
The KIT-DW-305 is typically installed in classroom, primary & secondary school, training room, hybrid learning. Room size, ceiling height and speaker layout determine the final configuration — send us a floor plan and our team will recommend a layout.
How many infrared channels does the KIT-DW-305 support?
The KIT-DW-305 offers 3 selectable infrared channels. Several microphones can operate in the same room on separate channels; match each microphone and receiver to the same channel to avoid cross-talk.
What certifications and warranty are available for the KIT-DW-305?
Seekika Audio supplies CE, RoHS and FCC compliance documentation for its classroom audio products. Classroom audio products carry a standard 2-year warranty against manufacturing defects, with extended coverage available on project orders.
