KIT-PAS9 All-in-One Classroom Audio Kit
A complete soundfield kit pairing the IR-PAS9 all-in-one active speaker with infrared microphones and a presenter remote. The receiver, sensors, amplifier and speakers live in one wall-mounted unit, so the room needs a single power connection — not a rack of separate components.
- All-in-one active speaker with built-in IR receiver, sensors, feedback suppressor, amplifier and DSP tone control.
- Three channels support two infrared microphones and one page-flipping presenter simultaneously.
- Single-screw wall mounting with a fall-proof safety steel wire.
Overview
Key features
- All-in-one active speaker with built-in IR receiver, sensors, feedback suppressor, amplifier and DSP tone control.
- Three channels support two infrared microphones and one page-flipping presenter simultaneously.
- Single-screw wall mounting with a fall-proof safety steel wire.
- Covers classrooms up to 100 m² — suited to kindergartens, primary and secondary schools.
- USB digital sound card and RS-232 serial control for recording and classroom automation.
- 2 × 40 W amplification with a 6.5-inch speaker unit.
The kit is assembled from matched Seekika Audio components, so the receiver, microphones, charging cradle and speakers arrive as one tested configuration rather than separate parts.
Each kit is configured before delivery for the target room size and microphone mix. Contact Seekika Audio with the room dimensions and ceiling type for a configuration and deployment plan.

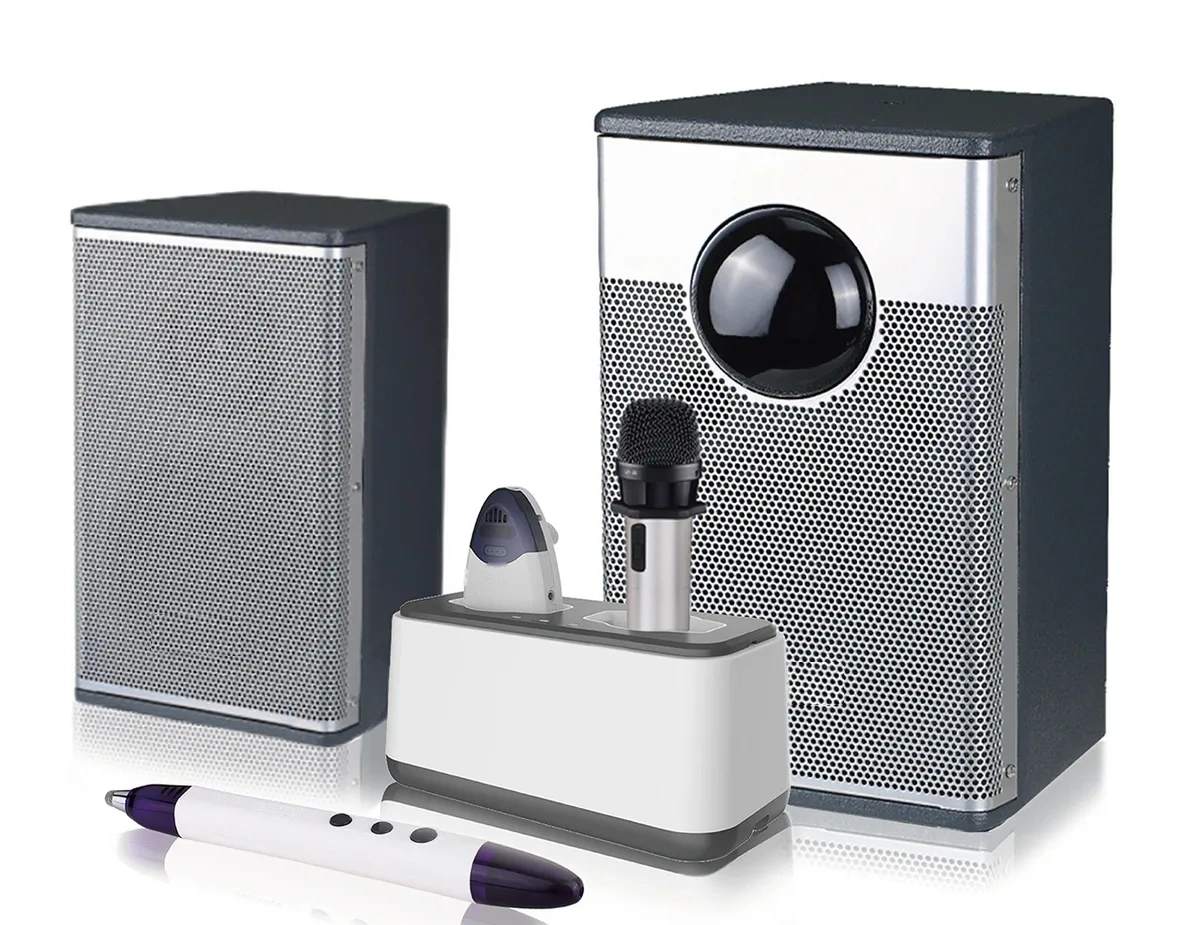

What’s in the box

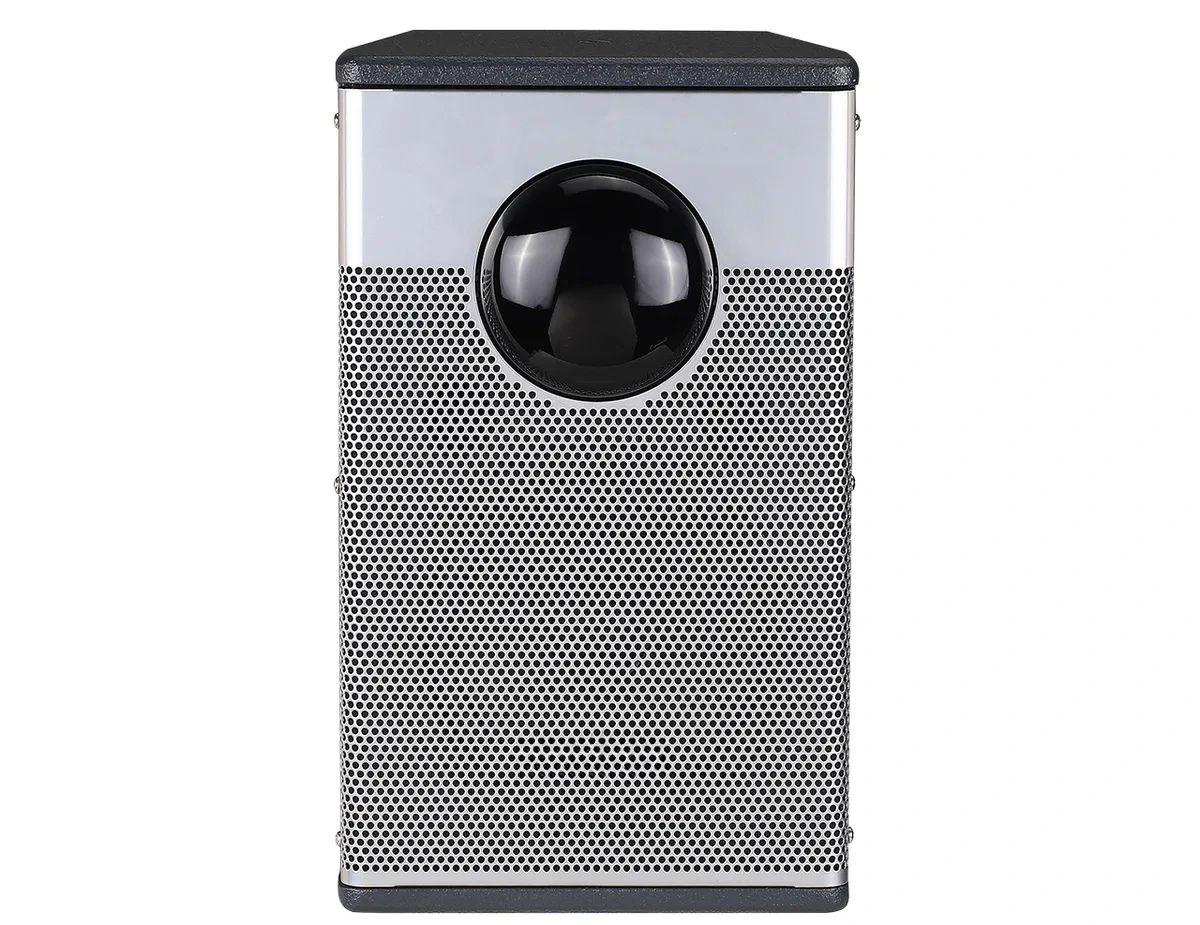

- IR-PAS9 all-in-one active speaker
- Two infrared microphones as configured
- Infrared presenter remote
- Charging cradle
- Mounting screw, safety wire and template
- Power cord and user guide
Specifications
Audio & wireless
| Built-in modules | Class D Digital Amplifier, IR Receiver&Sensors |
|---|---|
| Speaker unit | 6.5" × 1 |
| Built-in IR sensors | 1 |
| Infrared channels | 3-Channels, 2 IR Microphones and 1 IR Page-Flipping Controller. |
| Frequency response | 50 Hz-20 kHz±3 dB |
| THD | ≤0.05% |
| Signal-to-noise ratio | ≥78 dB (MIC1.2), ≥80 dB (LINE), 98 dB (IR MIC)(A-weighted) |
| Dynamic range | 100 dB |
| Frequency stability | ±0.005%(-10℃-40℃) |
Power & charging
| Rated power | ≥Max2 × 40 W@ 8 Ω |
|---|---|
| Input sensitivity | 1.5 mV (MIC):150 mV (LINE) |
| Input impedance | 2KΩ(MIC):47Ω(LINE) |
Connectivity & control

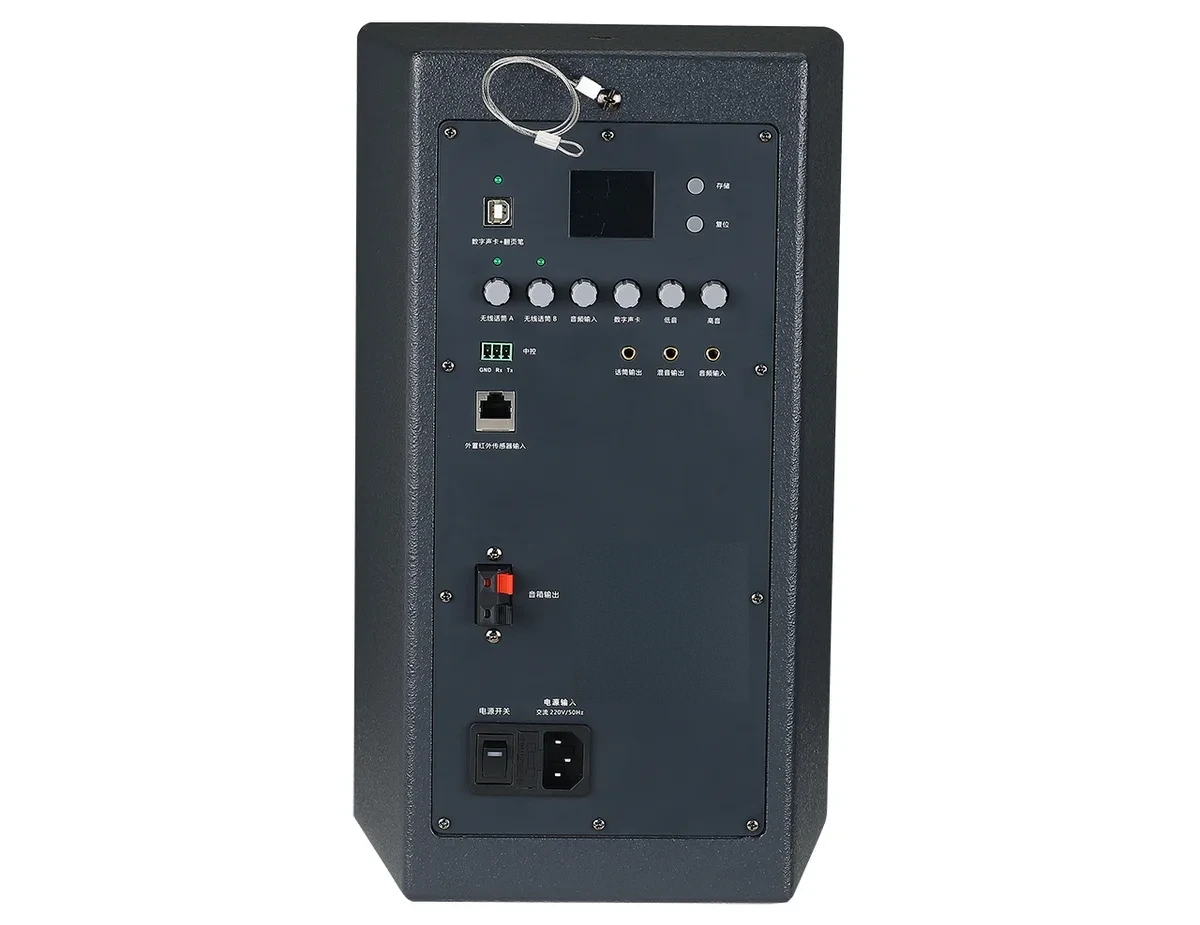

| Inputs | 1 × RJ45(can connect 2 infrared sensors); 1 × RCA Audio In; |
|---|---|
| Outputs | 1 × USB; 1 Mixing Audio Out; 1 × Independent Microphone Out; 1 × Speaker; |
Coverage & installation
| Working area | Up to 100 m² |
|---|
Physical
| Housing material | 12-Layers Solid Wood |
|---|
Compatibility & included
| Included speaker | IR-PAS9 all-in-one active speaker |
|---|---|
| Included microphones | 2 × IR microphones + presenter (as configured) |
Applications
Planning a classroom or campus project?
Share your floor plan and room schedule — we will recommend microphone coverage, speaker placement and kit configuration.
Frequently Asked Questions
Which rooms is the KIT-PAS9 designed for?
The KIT-PAS9 is typically installed in classroom, primary & secondary school, training room, hybrid learning. Room size, ceiling height and speaker layout determine the final configuration — send us a floor plan and our team will recommend a layout.
How many infrared channels does the KIT-PAS9 support?
The KIT-PAS9 offers 3 selectable infrared channels. Several microphones can operate in the same room on separate channels; match each microphone and receiver to the same channel to avoid cross-talk.
What coverage does the KIT-PAS9 provide?
The rated coverage is Up to 100 m². Infrared coverage depends on sensor placement and room geometry; an expansion sensor can be added where the room has shadowed areas.
What certifications and warranty are available for the KIT-PAS9?
Seekika Audio supplies CE, RoHS and FCC compliance documentation for its classroom audio products. Classroom audio products carry a standard 2-year warranty against manufacturing defects, with extended coverage available on project orders.
