KIT-IR-601 Six-Channel Classroom Kit
A group-teaching kit built around the six-channel IR-601 receiver. Six colour-coded handheld microphones can operate at once, making it straightforward to hand a microphone to individual students without passing one unit around the room.
- Up to six infrared microphones run simultaneously without interference — ideal for group teaching and student participation.
- Six colour-coded handheld microphones make channel management easy in a busy classroom.
- IPM power management puts each microphone to sleep after one second of inactivity and wakes it on movement.
Overview
Key features
- Up to six infrared microphones run simultaneously without interference — ideal for group teaching and student participation.
- Six colour-coded handheld microphones make channel management easy in a busy classroom.
- IPM power management puts each microphone to sleep after one second of inactivity and wakes it on movement.
- Video-tracking output follows the active speaker for recording and automatic camera control.
- Compatible with active recorders without echo, and with classroom video-tracking systems.
- Independent channel outputs and RS-232 control simplify integration with AV systems.
The kit is assembled from matched Seekika Audio components, so the receiver, microphones, charging cradle and speakers arrive as one tested configuration rather than separate parts.
Each kit is configured before delivery for the target room size and microphone mix. Contact Seekika Audio with the room dimensions and ceiling type for a configuration and deployment plan.
What’s in the box
- IR-601 six-channel infrared receiver

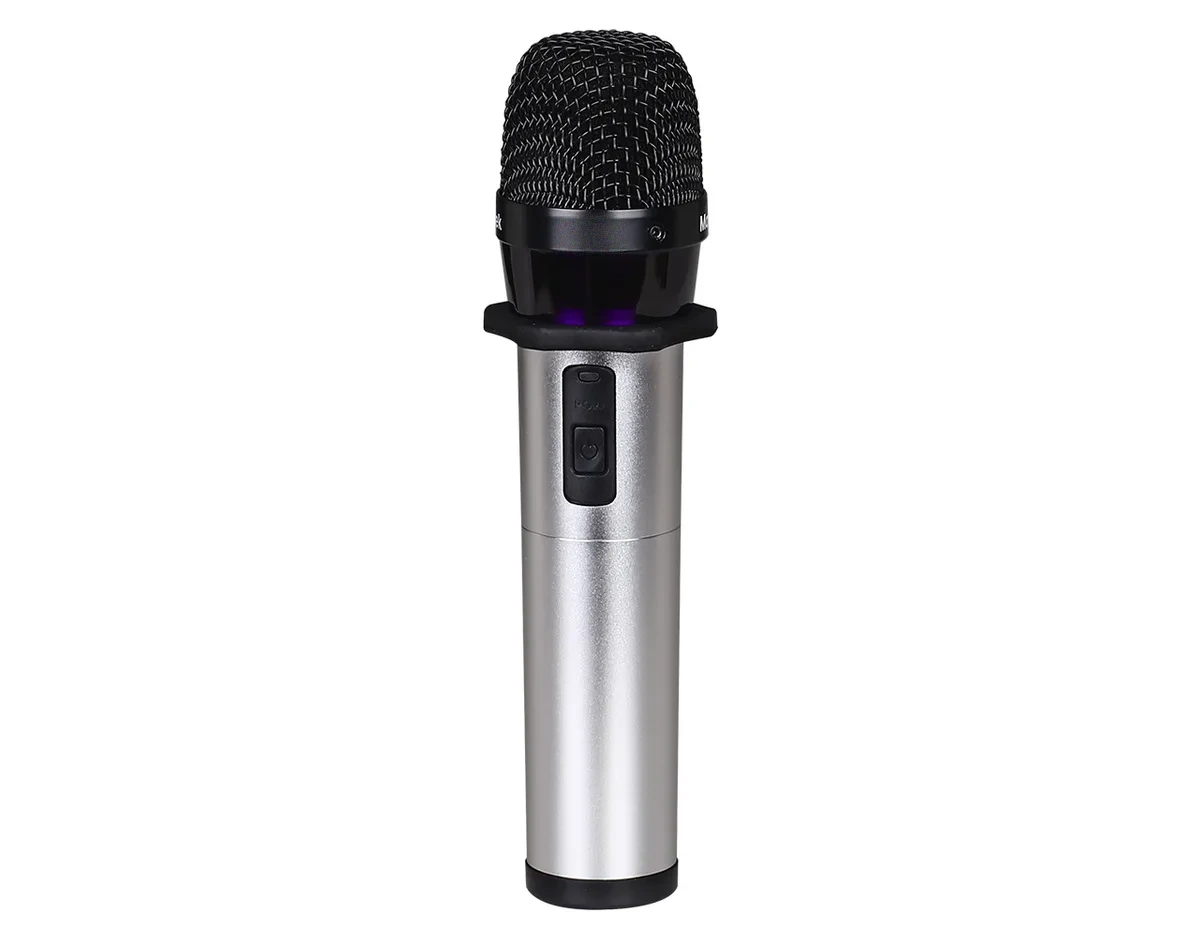

- Six colour-coded infrared handheld microphones
- Multi-slot charging station
- Audio and control cables
- Installation and user guide
Specifications
Audio & wireless
| Wireless mode | Infrared (850 nm) |
|---|---|
| Infrared channels | 6 simultaneous microphones |
| Selectable channels | 6 |
| Frequency response | 50 Hz–20 kHz ±3 dB |
| THD | <0.05% |
| Signal-to-noise ratio | 100 dB |
| Video tracking | Active-speaker tracking output |
| Recorder compatibility | Active recorder compatible, echo-free |
Connectivity & control
| Independent outputs | 6 channel outputs |
|---|---|
| Mixed output | 1 mixing output |
| Control | USB RS-232; supports IR page-flipping controller |
Compatibility & included
| Receiver | IR-601 six-channel infrared receiver |
|---|---|
| Included microphones | 6 colour-coded handheld microphones |
Applications
Planning a classroom or campus project?
Share your floor plan and room schedule — we will recommend microphone coverage, speaker placement and kit configuration.
Frequently Asked Questions
Which rooms is the KIT-IR-601 designed for?
The KIT-IR-601 is typically installed in classroom, primary & secondary school, training room, group teaching. Room size, ceiling height and speaker layout determine the final configuration — send us a floor plan and our team will recommend a layout.
How many infrared channels does the KIT-IR-601 support?
The KIT-IR-601 offers 6 selectable infrared channels. Several microphones can operate in the same room on separate channels; match each microphone and receiver to the same channel to avoid cross-talk.
What certifications and warranty are available for the KIT-IR-601?
Seekika Audio supplies CE, RoHS and FCC compliance documentation for its classroom audio products. Classroom audio products carry a standard 2-year warranty against manufacturing defects, with extended coverage available on project orders.
