IR-630H Multi-Functional Infrared Microphone
The IR-630H is a two-in-one infrared microphone that switches between handheld and neck-worn pendant modes. It offers six channels, a built-in laser pointer and page-flip controls, and up to 8 hours of use from a 2-hour charge.

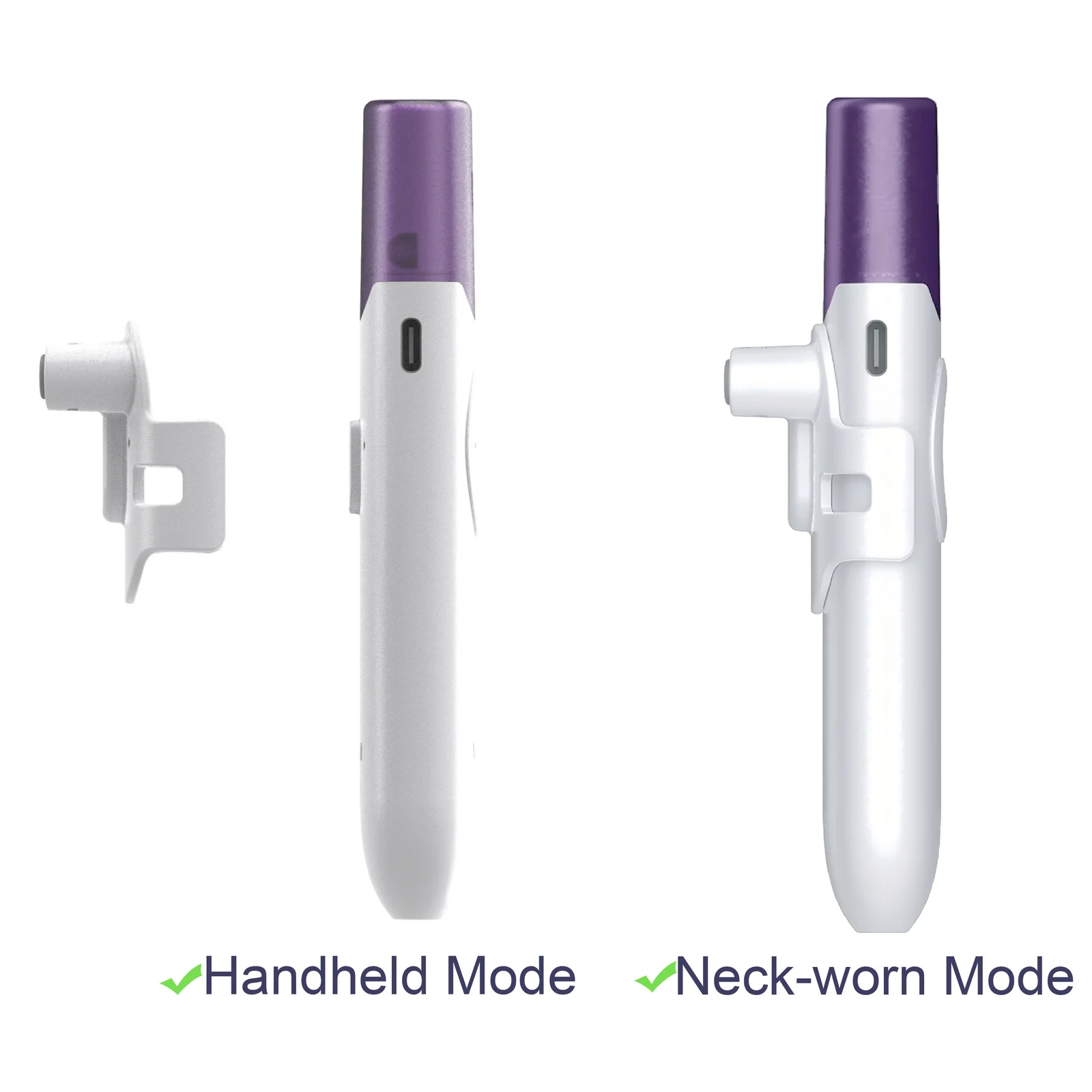

- Handheld or neck-worn pendant mode — one microphone adapts to teaching, lecturing and guided tours.
- Four dual-colour indicators show battery level and volume at a glance.
- Built-in laser pointer, page-flip buttons and volume control for presentations.
Overview
Key features
- Handheld or neck-worn pendant mode — one microphone adapts to teaching, lecturing and guided tours.
- Four dual-colour indicators show battery level and volume at a glance.
- Built-in laser pointer, page-flip buttons and volume control for presentations.
- Infrared 850 nm transmission with six selectable frequency channels; power on and speak without pairing.
- IPM power management puts the microphone to sleep after one second of inactivity and wakes it on movement.
- Magnetic charging cradle plus a USB-C spare charging port.
- Upgraded silicone lanyard is comfortable, easy to clean and designed for daily classroom use.
- Flame-retardant ABS housing with an ECM condenser capsule.

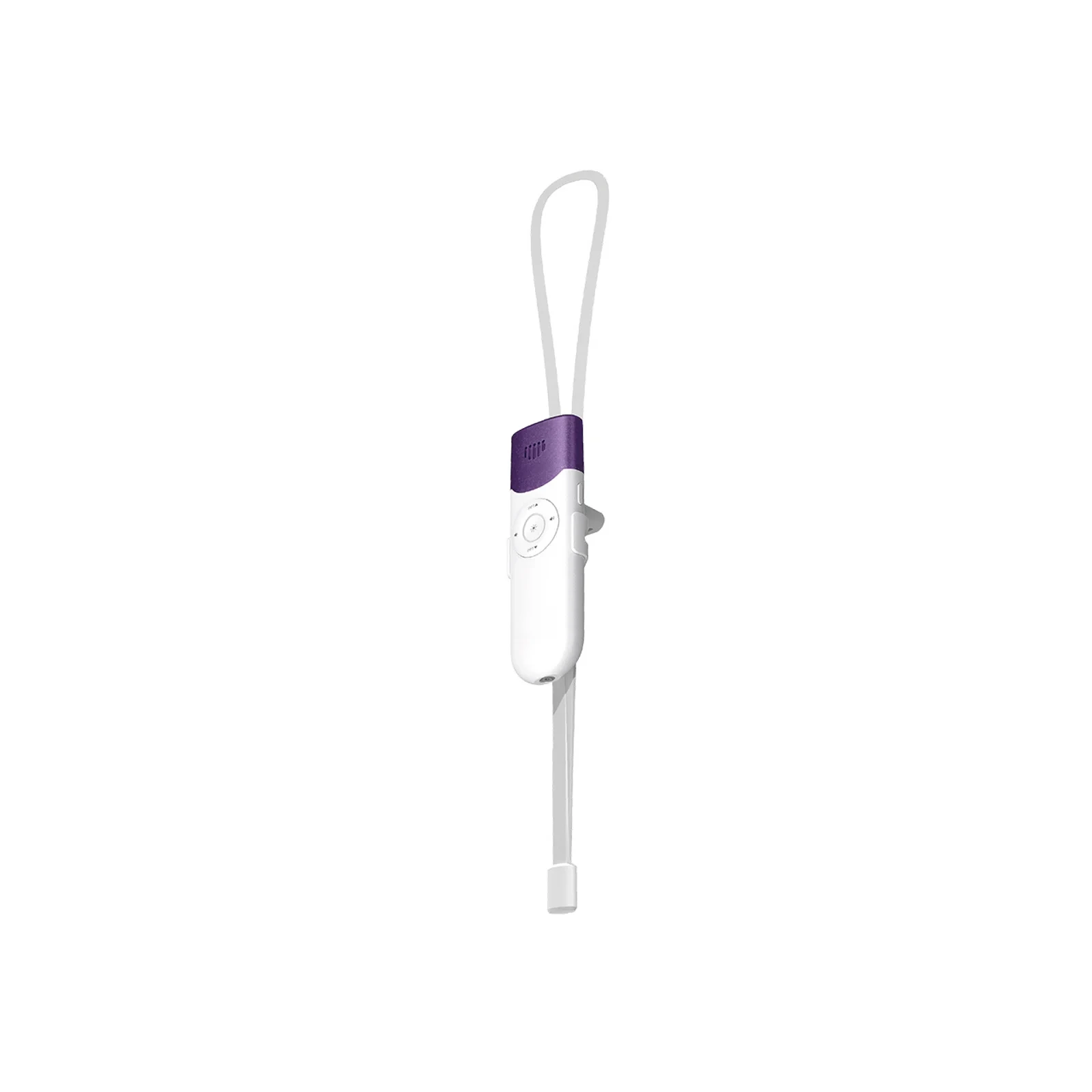

The IR-630H is a multi-functional infrared microphone built for teachers who move between the desk, the whiteboard and the middle of the room. Clip on the silicone lanyard and it works as a pendant microphone; remove the lanyard and it becomes a handheld microphone with a laser pointer and page-flip controls.
Infrared transmission keeps the audio link independent of Wi-Fi, Bluetooth and mobile networks. Six selectable frequency channels let neighbouring rooms operate side by side without cross-talk, and there is no pairing procedure — switch the microphone on and it is ready.
Designed for a full teaching day
- All-day battery — a two-hour charge provides up to eight hours of use, while the magnetic cradle makes dock-and-charge simple between lessons.
- Clear status at a glance — four dual-colour indicators show remaining battery and volume level without opening a menu.
- Automatic power management — IPM sleep after one second of inactivity extends battery life and wakes the microphone as soon as it is picked up.

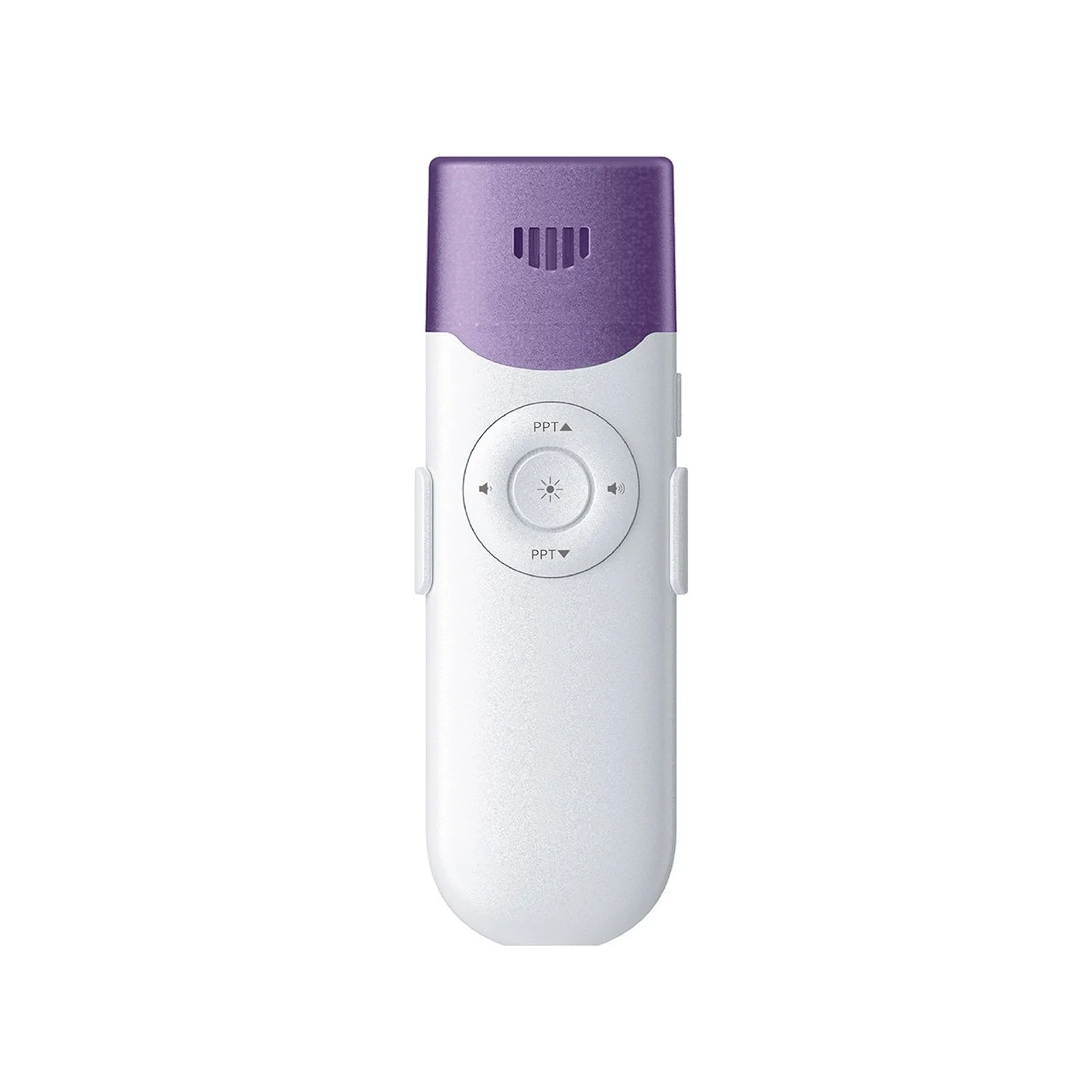

- Presentation-ready — laser pointer, PPT page up/down and volume buttons keep the teacher in control of the lesson from anywhere in the room.
The IR-630H pairs with Seekika IR-S and DW-series receivers and amplifiers. It is suitable for classrooms, lecture halls, training rooms and guided tours.
What’s in the box
- IR-630H microphone
- Silicone lanyard
- USB-C charging cable
- User guide
Specifications
Microphone
| Wireless mode | Infrared (850 nm) |
|---|---|
| Selectable frequency channels | 6 |
| Capsule | Condenser ECM |
| Charging mode | Charging cradle or USB-C |
| Battery | Full charge in 2 hours, up to 8 hours of use |
| Size | 43 × 21.81 × 135 mm |
| Input interface | USB-C |
| Material | Flame-retardant ABS |
Presentation controls
| Laser pointer | Built-in |
|---|---|
| Page flipping | Supported |
| Volume control | Supported |
| Status indicators | 4 × dual-colour battery and volume indicators |
| Power management | IPM auto sleep and motion wake |
Compatibility
| Wearing modes | Handheld or neck-worn pendant |
|---|---|
| Receiver compatibility | Works with Seekika infrared receivers and amplifiers |
| Spare charging | USB-C port |
Applications
Planning a classroom or campus project?
Share your floor plan and room schedule — we will recommend microphone coverage, speaker placement and kit configuration.
Frequently Asked Questions
Which rooms is the IR-630H designed for?
The IR-630H is typically installed in classroom, lecture hall, training room, presentation. Room size, ceiling height and speaker layout determine the final configuration — send us a floor plan and our team will recommend a layout.
How many infrared channels does the IR-630H support?
The IR-630H offers 6 selectable infrared channels. Several microphones can operate in the same room on separate channels; match each microphone and receiver to the same channel to avoid cross-talk.
What certifications and warranty are available for the IR-630H?
Seekika Audio supplies CE, RoHS and FCC compliance documentation for its classroom audio products. Classroom audio products carry a standard 2-year warranty against manufacturing defects, with extended coverage available on project orders.
- OEM / ODM customization
- CE, RoHS & FCC documentation
- System layout and commissioning support
- Reply within one business day
