KIT-DW-306 Expandable Classroom Audio Kit
A larger classroom audio kit built on the four-zone DW-306 amplifier. It delivers 4 × 70 W, drives up to eight speakers and covers teaching spaces up to 400 m², including university lecture theatres.
- Three-channel infrared system supports two microphones and one presenter remote simultaneously.
- 4 × 70 W at 8 Ω (4 × 130 W at 4 Ω) with outputs for up to eight speakers.
- Designed for classrooms and lecture theatres up to 400 m².
Overview
Key features
- Three-channel infrared system supports two microphones and one presenter remote simultaneously.
- 4 × 70 W at 8 Ω (4 × 130 W at 4 Ω) with outputs for up to eight speakers.
- Designed for classrooms and lecture theatres up to 400 m².
- Infrared sensors can be integrated into the loudspeakers, reducing separate sensor installation.
- USB camera input and a built-in digital sound card support lecture capture and online teaching.
- IPM power management and automatic sleep extend microphone battery life.
The kit is assembled from matched Seekika Audio components, so the receiver, microphones, charging cradle and speakers arrive as one tested configuration rather than separate parts.
Each kit is configured before delivery for the target room size and microphone mix. Contact Seekika Audio with the room dimensions and ceiling type for a configuration and deployment plan.
What’s in the box

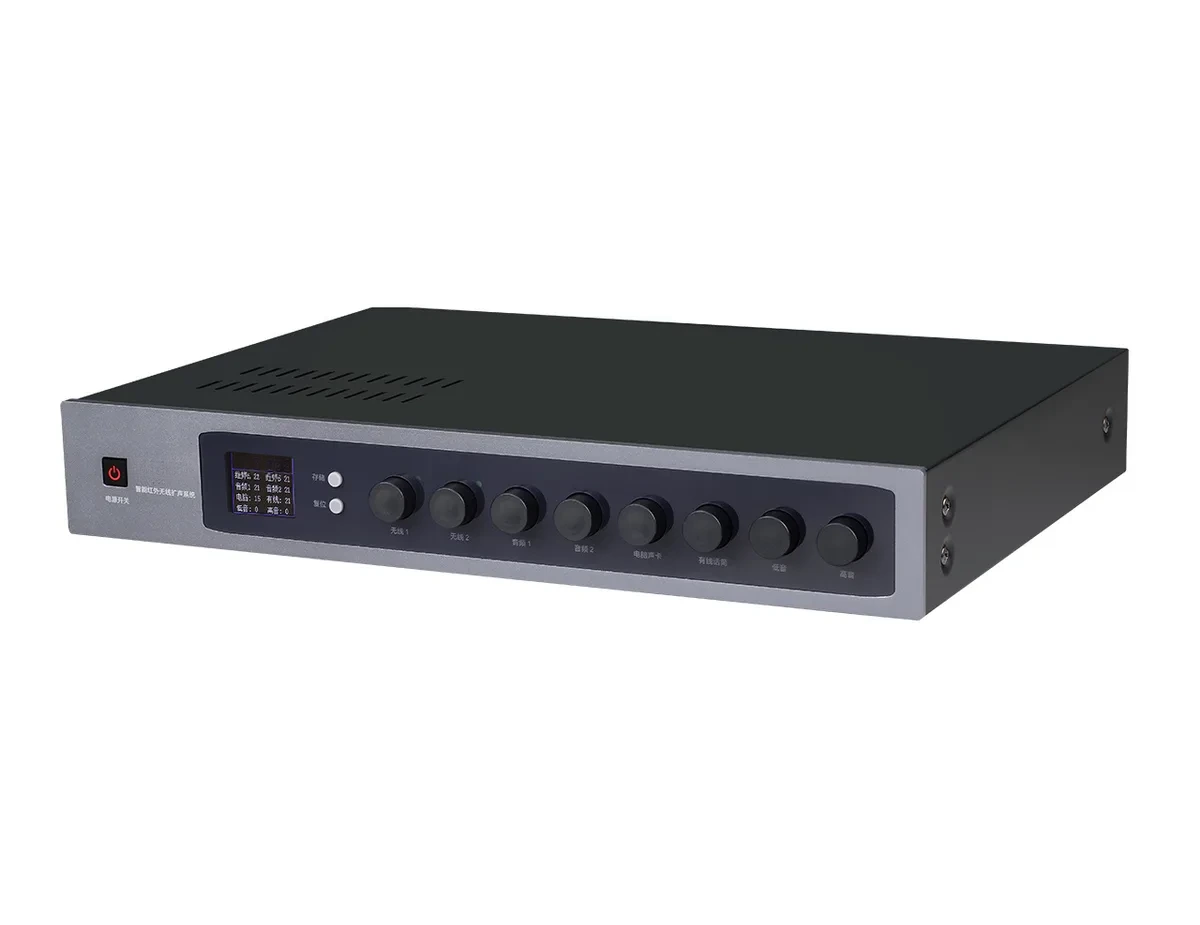

- DW-306 four-zone infrared wireless microphone amplifier
- Infrared handheld and/or pendant microphones as configured
- Charging cradle for the supplied microphones
- Classroom speakers as configured
- Power, speaker and audio connection cables
- Installation and user guide
Specifications
Audio & wireless
| Infrared channels | 3 channels |
|---|---|
| Selectable channels | 3 |
| Frequency response | 50 Hz–20 kHz ±3 dB |
| THD | <0.05% |
| Signal-to-noise ratio | ≥78 dB (MIC1.2), ≥80 dB (LINE), ≥98 dB (IR MIC) |
| Dynamic range | 100 dB |
| Frequency stability | ±0.005%(-10℃-40℃) |
Power & charging
| Rated power | (8Ω) 4 × 70 W:(4Ω) 4 × 130 W |
|---|---|
| Input sensitivity | 20 mV(MIC1.2), 700 mV (LINE) |
| Input impedance | 22KΩ(MIC1.2), 390Ω(LINE) |
Connectivity & control

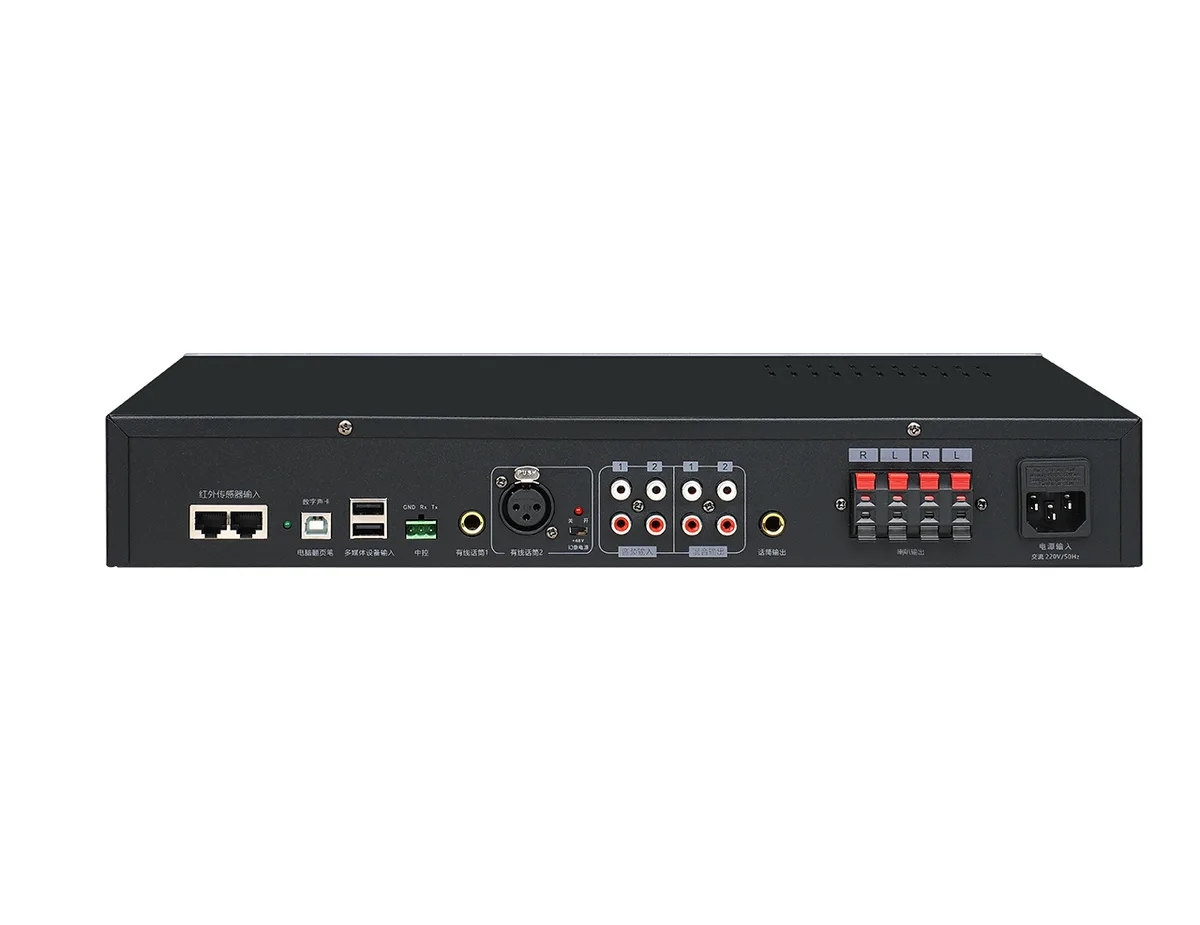

| Inputs | 2 × RJ45 ports(connect Max.4 IR sensors); 2 × audio inputs; 1 × 1/4"MIC in; 1 × (48 V phantom power)XLR input; 1 × USB digital sound card; 2 × USB multimedia interfaces; |
|---|---|
| Outputs | 2 × mixing audio output; 1 × Mic out; 8 sets of speaker ports |
Coverage & installation
| System coverage | Up to 400 m² |
|---|
Compatibility & included
| Receiver / amplifier | DW-306 four-zone infrared amplifier |
|---|
Applications
Planning a classroom or campus project?
Share your floor plan and room schedule — we will recommend microphone coverage, speaker placement and kit configuration.
Frequently Asked Questions
Which rooms is the KIT-DW-306 designed for?
The KIT-DW-306 is typically installed in classroom, university lecture hall, training room, hybrid learning. Room size, ceiling height and speaker layout determine the final configuration — send us a floor plan and our team will recommend a layout.
How many infrared channels does the KIT-DW-306 support?
The KIT-DW-306 offers 3 selectable infrared channels. Several microphones can operate in the same room on separate channels; match each microphone and receiver to the same channel to avoid cross-talk.
What certifications and warranty are available for the KIT-DW-306?
Seekika Audio supplies CE, RoHS and FCC compliance documentation for its classroom audio products. Classroom audio products carry a standard 2-year warranty against manufacturing defects, with extended coverage available on project orders.
