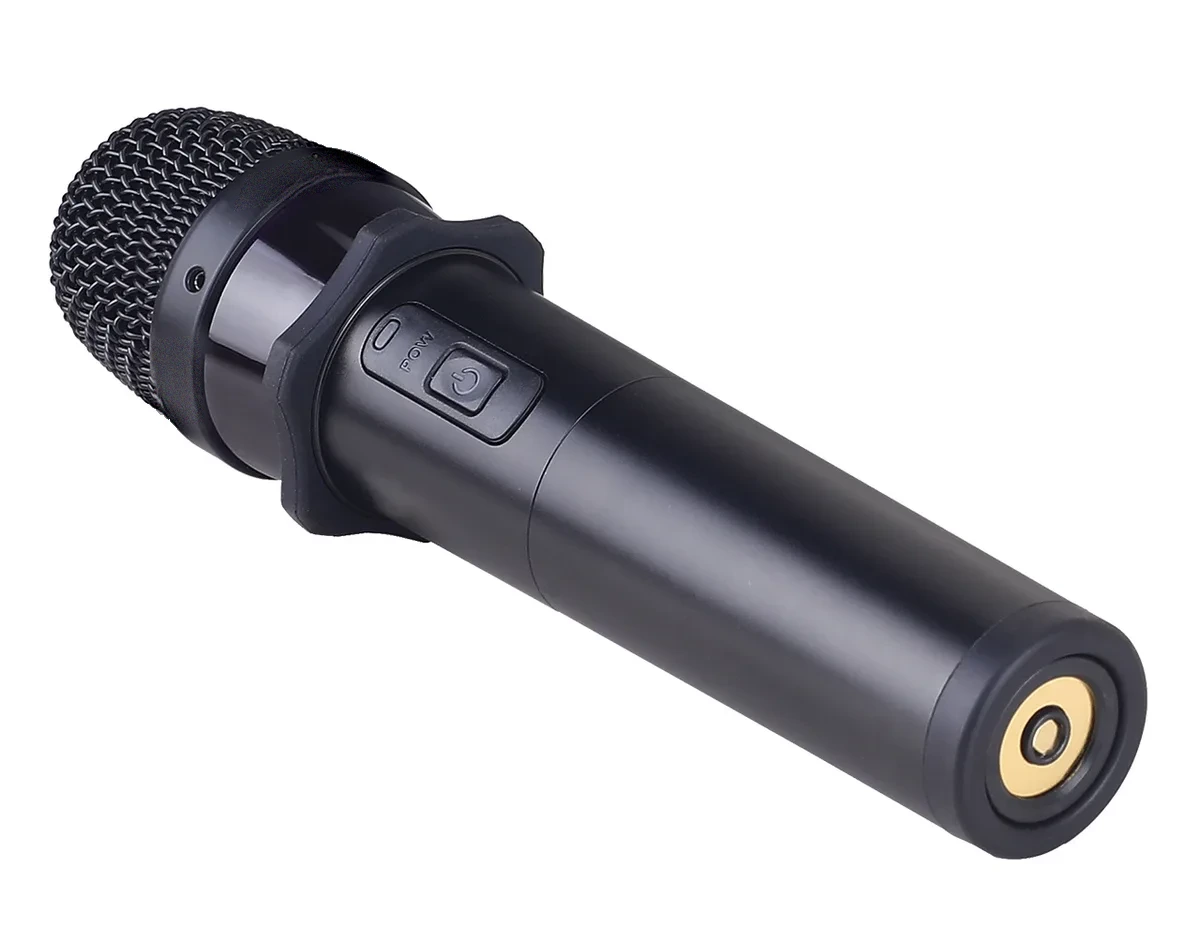

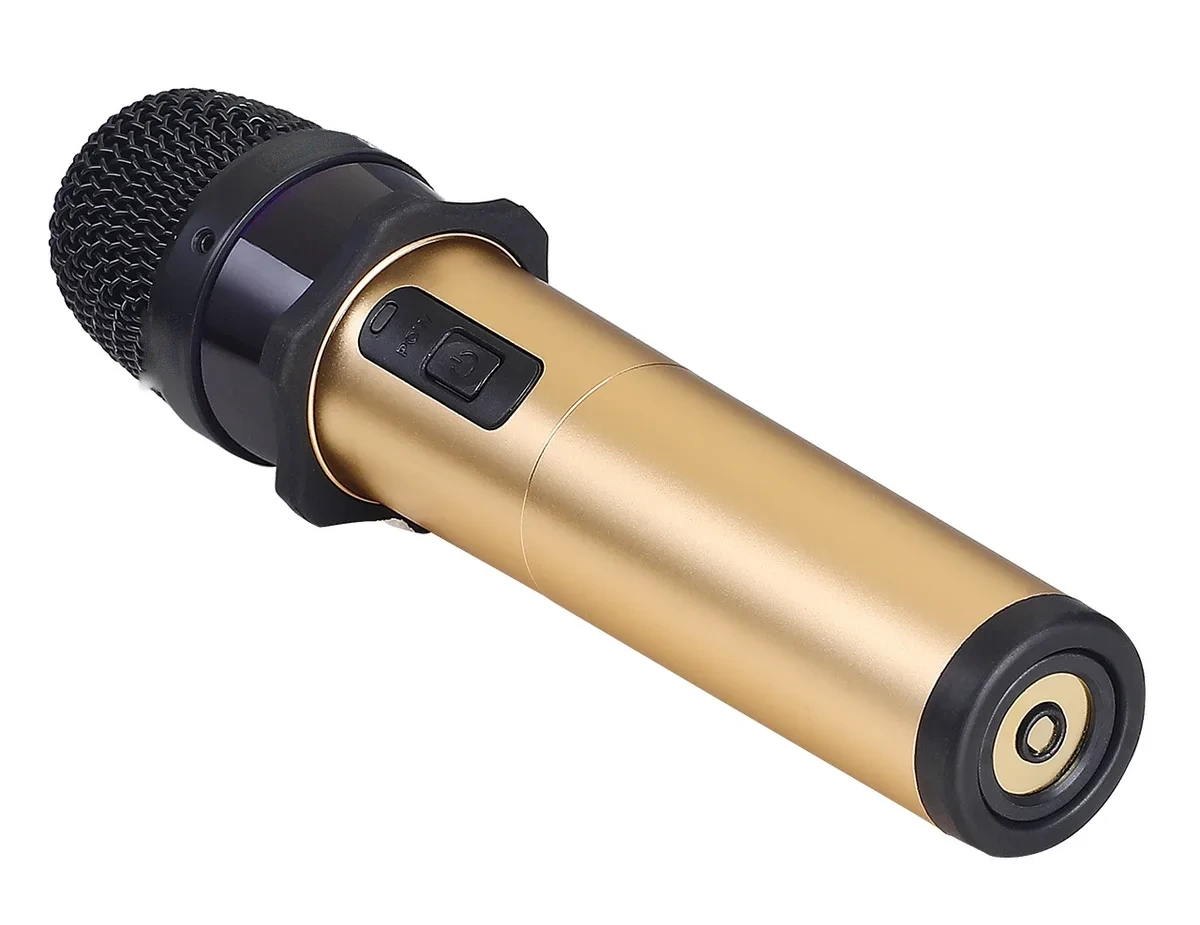

IR-610H Infrared Handheld Microphone
A slim aluminium handheld microphone with six infrared channels and a built-in gyroscope that puts the microphone to sleep when it is set down. The magnetic charging cradle tops up its AA lithium-ion battery in two hours.
- Six selectable infrared channels with no frequency matching.
- Condenser ECM capsule in a 28 mm aluminium alloy body.
- Built-in gyroscope enables automatic sleep when the microphone is laid down.
Overview
Key features
- Six selectable infrared channels with no frequency matching.
- Condenser ECM capsule in a 28 mm aluminium alloy body.
- Built-in gyroscope enables automatic sleep when the microphone is laid down.
- One AA rechargeable lithium-ion battery: two-hour charge for up to six hours of use.
- Magnetic charging cradle contacts and USB-C charging support.
- Compatible with Seekika infrared receivers and amplifiers.
The microphone is part of a common infrared ecosystem: the same receivers, sensors and charging cradles work across handheld, pendant and presenter models.
The microphone pairs with Seekika infrared receivers and amplifiers and is available with matching charging cradles. Contact Seekika Audio for microphone counts, charging arrangements and spare batteries.
What’s in the box
- IR-610H handheld microphone
- Rechargeable AA battery
- User guide
Specifications
Audio & wireless
| Wireless mode | Infrared (850 nm) |
|---|---|
| Selectable channels | 6 |
| Capsule | Condenser ECM |
Power & charging
| Charging mode | Charging Cradle |
|---|---|
| Battery | 1 × AA rechargeable lithium-ion battery(3.7 V) |
| Battery life | last for 6 hours on 2 hours Full charge |
Physical
| Dimensions | Φ28 mm(42 mm) × 163 mm |
|---|---|
| Material | Aluminium Alloy |
Compatibility & included
| Notes | Compatible with any Seekika Audio receiver/amplifier |
|---|---|
| Notes | Built-in gyroscope (Auto Sleep mode) |
Applications
Planning a classroom or campus project?
Share your floor plan and room schedule — we will recommend microphone coverage, speaker placement and kit configuration.
Frequently Asked Questions
Which rooms is the IR-610H designed for?
The IR-610H is typically installed in classroom, lecture hall, training room, presentation. Room size, ceiling height and speaker layout determine the final configuration — send us a floor plan and our team will recommend a layout.
How many infrared channels does the IR-610H support?
The IR-610H offers 6 selectable infrared channels. Several microphones can operate in the same room on separate channels; match each microphone and receiver to the same channel to avoid cross-talk.
What certifications and warranty are available for the IR-610H?
Seekika Audio supplies CE, RoHS and FCC compliance documentation for its classroom audio products. Classroom audio products carry a standard 2-year warranty against manufacturing defects, with extended coverage available on project orders.
