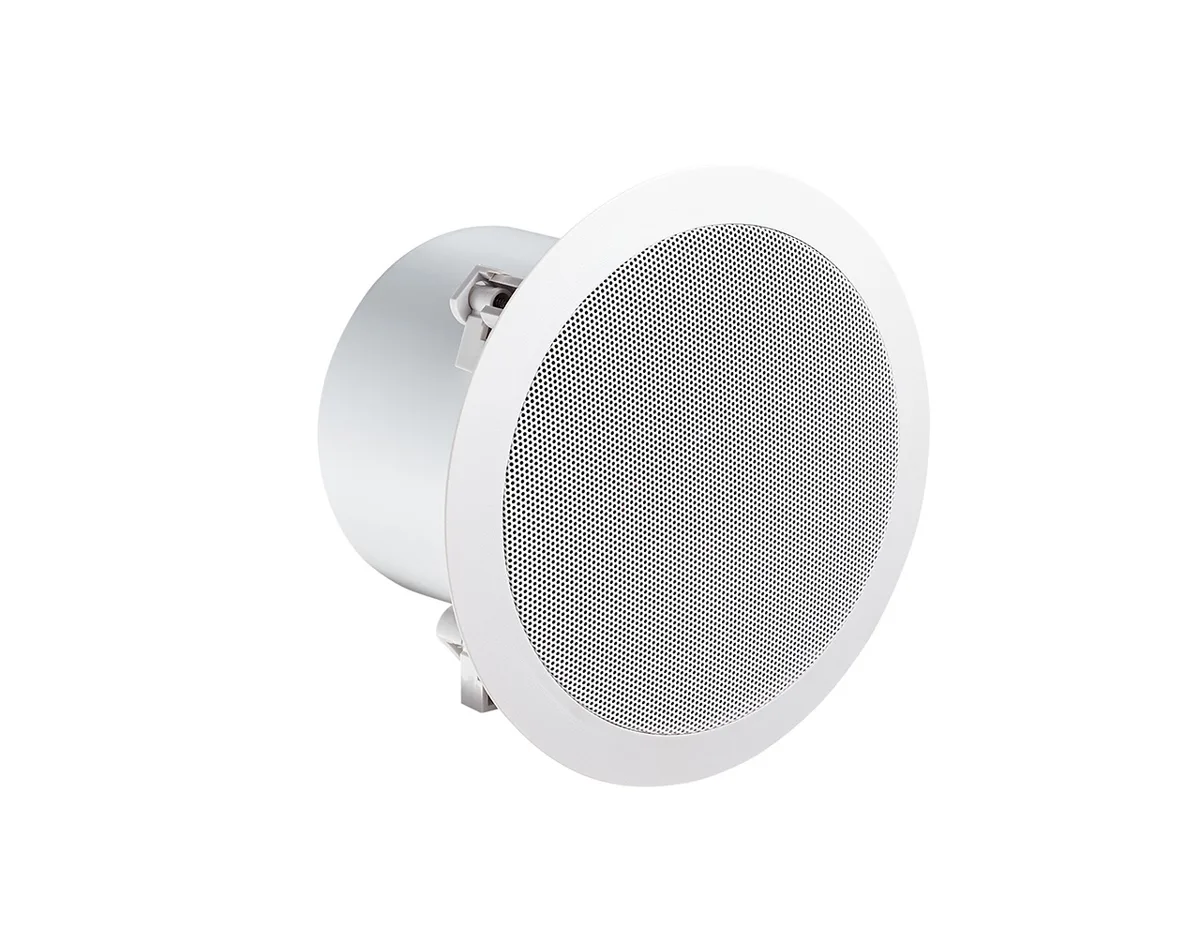

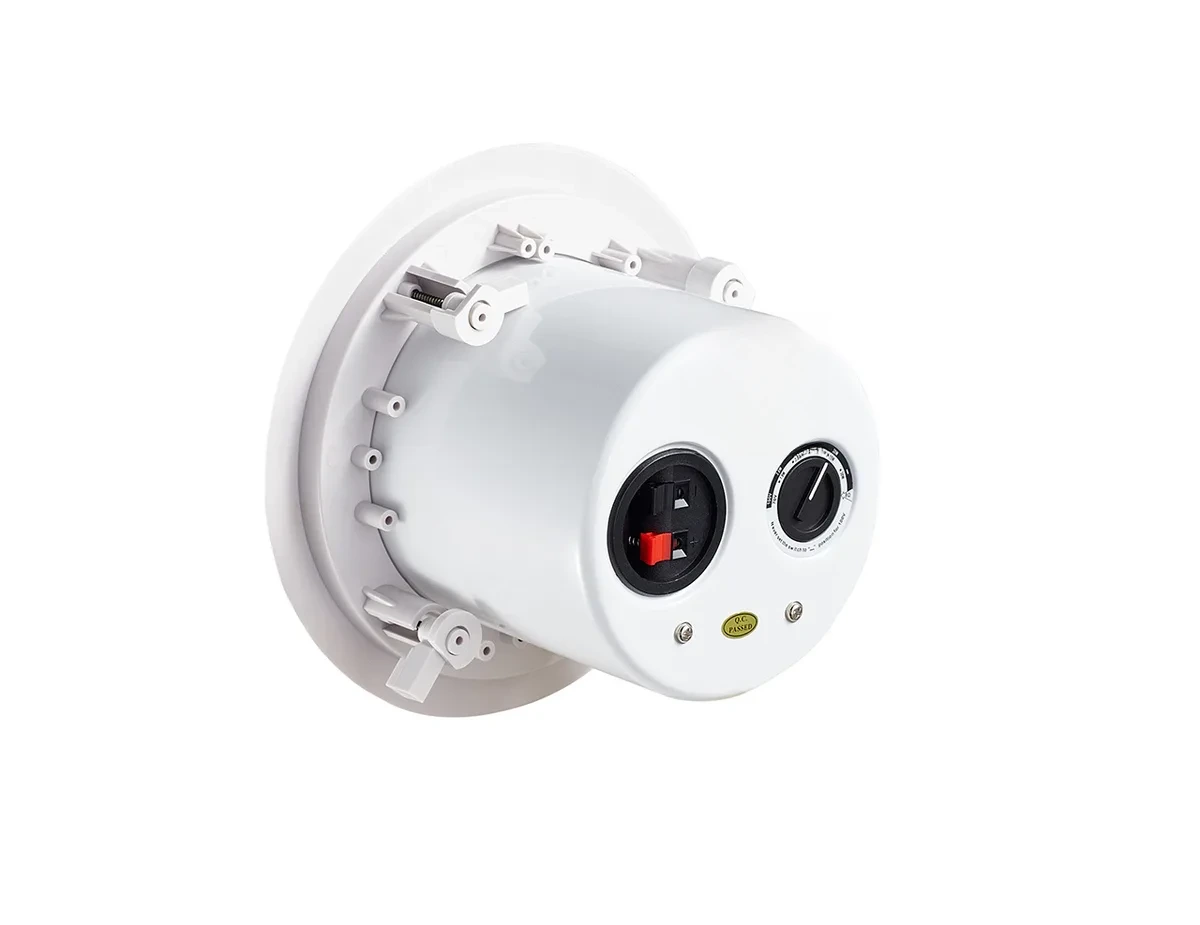

MZ-CC2065 6.5-Inch Ceiling Speaker
A 30 W ceiling speaker with a 6-inch woofer and 0.5-inch tweeter, voiced for speech and background music. It supports 8 Ω, 70 V and 100 V line systems and mounts in a standard ceiling cut-out.
- 6-inch woofer and 0.5-inch tweeter for speech and music.
- 30 W rated power with 90 Hz–20 kHz frequency response.
- 8 Ω, 70 V and 100 V impedance options.
Overview
Key features
- 6-inch woofer and 0.5-inch tweeter for speech and music.
- 30 W rated power with 90 Hz–20 kHz frequency response.
- 8 Ω, 70 V and 100 V impedance options.
- 88 ± 3 dB sensitivity and 90 dB maximum SPL.
- ABS front baffle with an iron rear shell.
- 230 × 150 mm housing for ceiling installation.
The speaker is part of a common passive range, allowing rooms of different sizes to use the same amplifier and mounting approach.
Pair with Seekika infrared amplifiers and receivers for a complete classroom audio system. Contact Seekika Audio for room coverage and mounting advice.
What’s in the box
- MZ-CC2065 ceiling speaker
- Mounting hardware
- User guide
Specifications
Audio & wireless
| Frequency response | 90-20 kHz |
|---|---|
| High-frequency unit | 1/2" × 1 |
| Low-frequency unit | 6" × 1 |
| Sensitivity | 88±3 dB/1 W/1M |
| Maximum SPL | 90 dB |
Power & charging
| Impedance | 8 Ω / 70 V / 100 V |
|---|---|
| Power (rated / peak) | 30 W |
Physical
| Dimensions | 230 × 150 mm |
|---|---|
| Weight | 2.16 kg |
| Housing material | ABS+iron rear shell |
Applications
Planning a classroom or campus project?
Share your floor plan and room schedule — we will recommend microphone coverage, speaker placement and kit configuration.
Frequently Asked Questions
Which rooms is the MZ-CC2065 designed for?
The MZ-CC2065 is typically installed in classroom, lecture hall, meeting room, campus. Room size, ceiling height and speaker layout determine the final configuration — send us a floor plan and our team will recommend a layout.
What certifications and warranty are available for the MZ-CC2065?
Seekika Audio supplies CE, RoHS and FCC compliance documentation for its classroom audio products. Classroom audio products carry a standard 2-year warranty against manufacturing defects, with extended coverage available on project orders.
