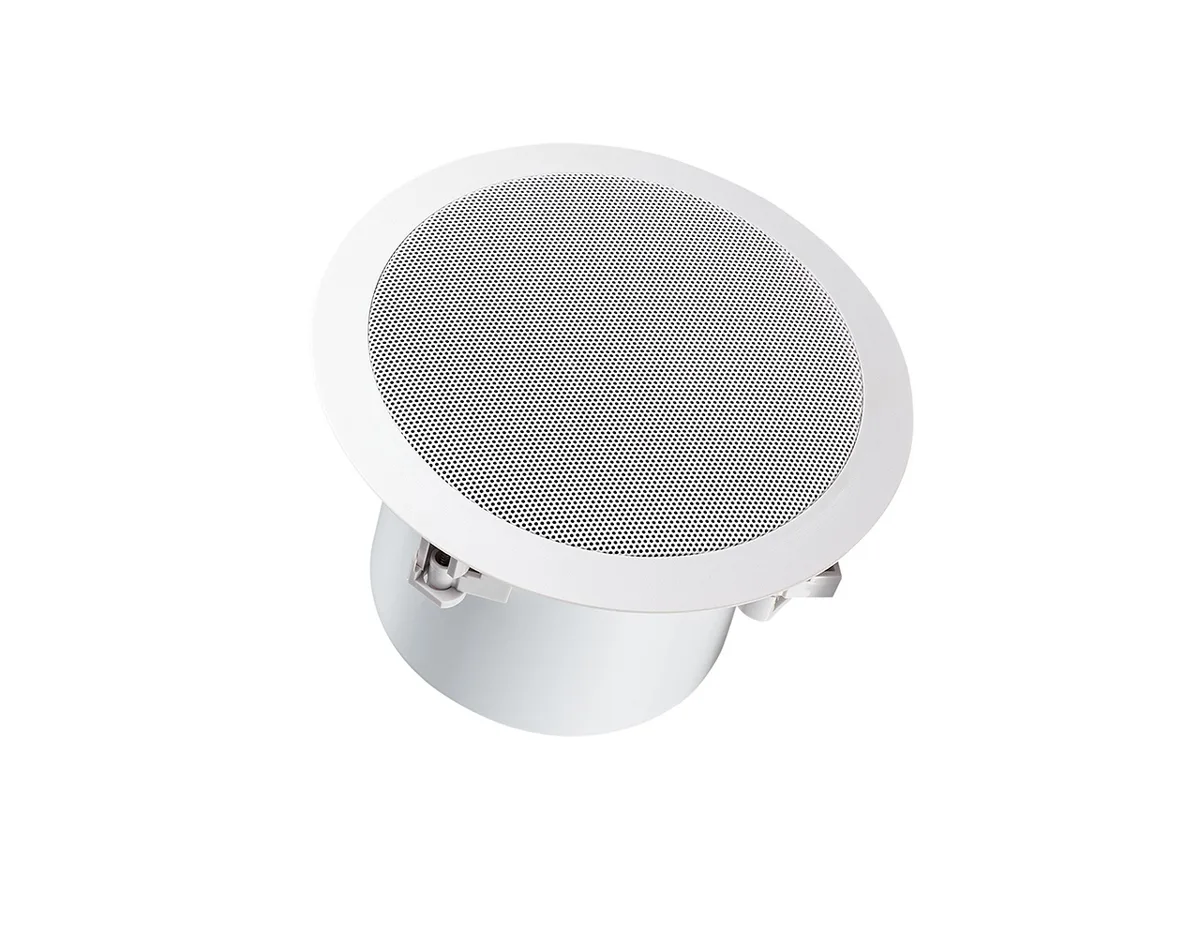

MZ-CC2085 8-Inch Ceiling Speaker
A 40 W ceiling speaker with an 8-inch woofer for rooms that need more low-frequency output than a compact ceiling unit. It supports 8 Ω, 70 V and 100 V systems and reaches 92 dB maximum SPL.
- 8-inch woofer and 0.5-inch tweeter with 40 W rated power.
- 50 Hz–18 kHz frequency response for speech and music.
- 8 Ω, 70 V and 100 V impedance options.
Overview
Key features
- 8-inch woofer and 0.5-inch tweeter with 40 W rated power.
- 50 Hz–18 kHz frequency response for speech and music.
- 8 Ω, 70 V and 100 V impedance options.
- 88 ± 3 dB sensitivity and 92 dB maximum SPL.

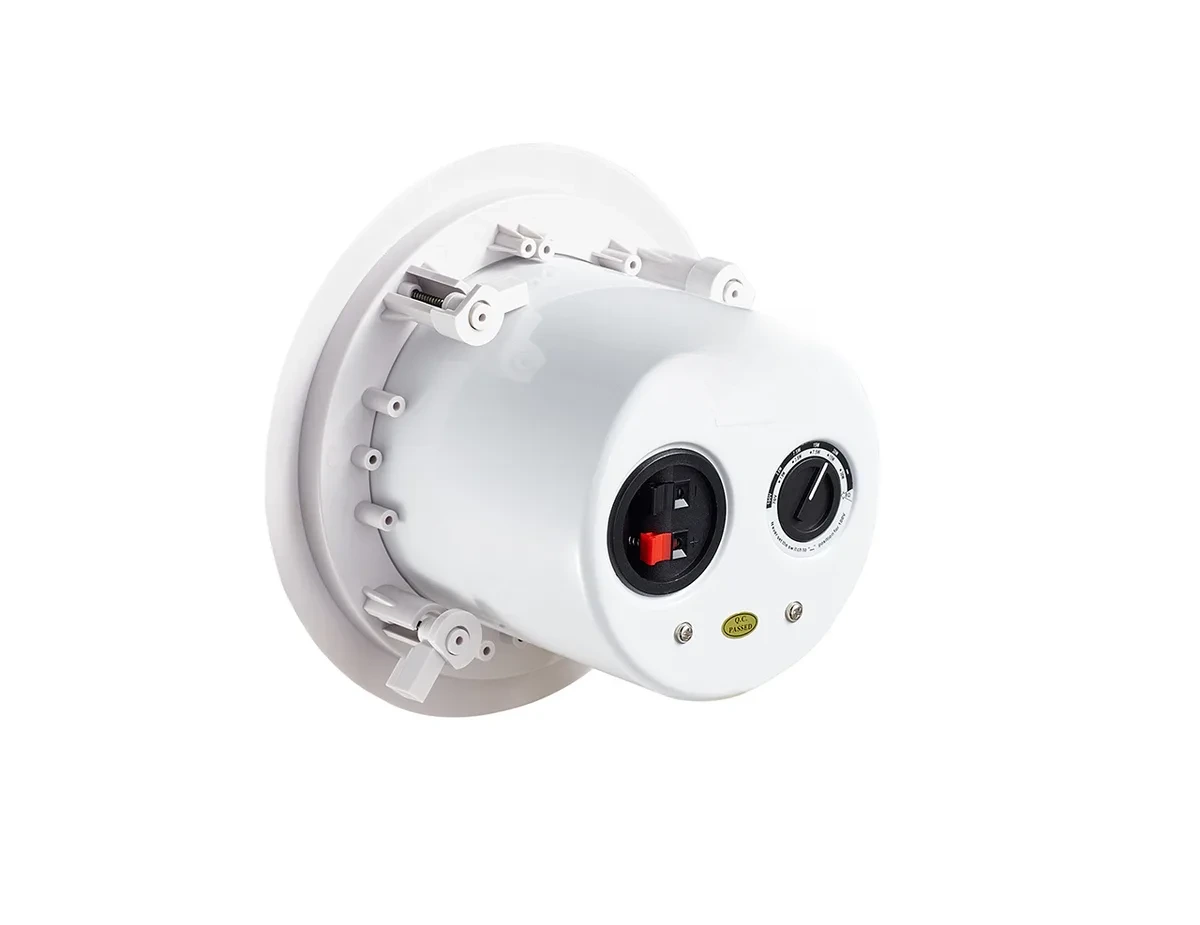

- ABS front baffle with an iron rear shell.
- 270 × 185 mm housing for ceiling installation.
The speaker is part of a common passive range, allowing rooms of different sizes to use the same amplifier and mounting approach.
Pair with Seekika infrared amplifiers and receivers for a complete classroom audio system. Contact Seekika Audio for room coverage and mounting advice.
What’s in the box
- MZ-CC2085 ceiling speaker
- Mounting hardware
- User guide
Specifications
Audio & wireless
| Frequency response | 50-18 kHz |
|---|---|
| High-frequency unit | 1/2" × 1 |
| Low-frequency unit | 8" × 1 |
| Sensitivity | 88±3 dB/1 W/1M |
| Maximum SPL | 92 dB |
Power & charging
| Impedance | 8 Ω / 70 V / 100 V |
|---|---|
| Power (rated / peak) | 40 W |
Physical
| Dimensions | 270 × 185 mm |
|---|---|
| Weight | 2.92 kg |
| Housing material | ABS+iron rear shell |
Applications
Planning a classroom or campus project?
Share your floor plan and room schedule — we will recommend microphone coverage, speaker placement and kit configuration.
Frequently Asked Questions
Which rooms is the MZ-CC2085 designed for?
The MZ-CC2085 is typically installed in classroom, lecture hall, meeting room, campus. Room size, ceiling height and speaker layout determine the final configuration — send us a floor plan and our team will recommend a layout.
What certifications and warranty are available for the MZ-CC2085?
Seekika Audio supplies CE, RoHS and FCC compliance documentation for its classroom audio products. Classroom audio products carry a standard 2-year warranty against manufacturing defects, with extended coverage available on project orders.
- OEM / ODM customization
- CE, RoHS & FCC documentation
- System layout and commissioning support
- Reply within one business day
