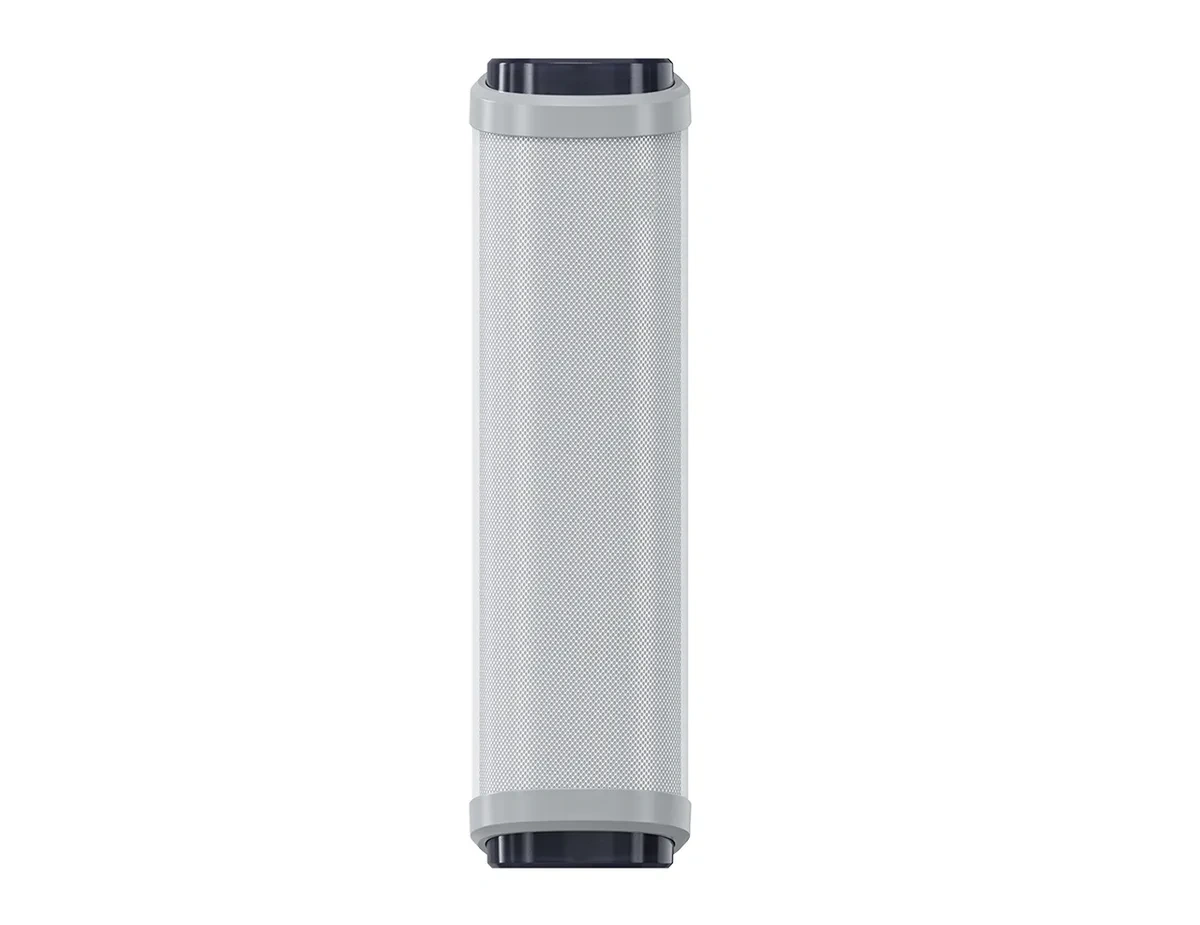

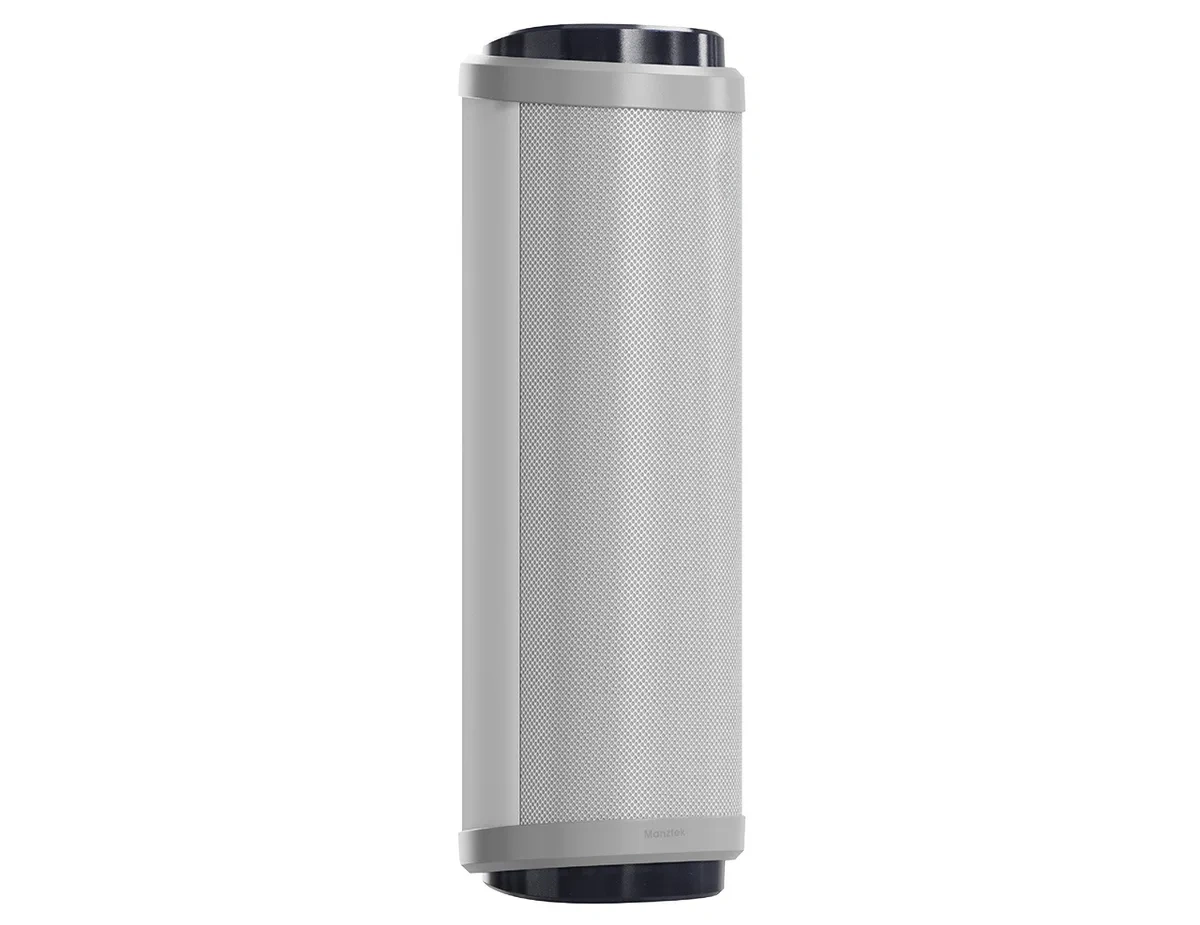

SP-IR234 Passive Speaker with Infrared Sensor
A passive column speaker with a built-in 24-diode infrared sensor array. It combines loudspeaker and sensor functions in one aluminium enclosure, reducing separate ceiling sensors and cabling.
- Built-in 24-diode ultra-wide-angle infrared sensor array.
- Two 4-inch speaker units with 30 W rated power at 8 Ω.
- Covers a 26 m unobstructed reception radius.
Overview
Key features
- Built-in 24-diode ultra-wide-angle infrared sensor array.
- Two 4-inch speaker units with 30 W rated power at 8 Ω.
- Covers a 26 m unobstructed reception radius.
- Two RJ45 sockets for link/input and link/output sensor cabling.
- Aluminium alloy column housing, 147.3 × 149.7 × 475 mm.
- Handles two infrared microphones and one presenter channel.
The speaker is part of a common passive range, allowing rooms of different sizes to use the same amplifier and mounting approach.
Pair with Seekika infrared amplifiers and receivers for a complete classroom audio system. Contact Seekika Audio for room coverage and mounting advice.
What’s in the box
- SP-IR234 speaker with sensor

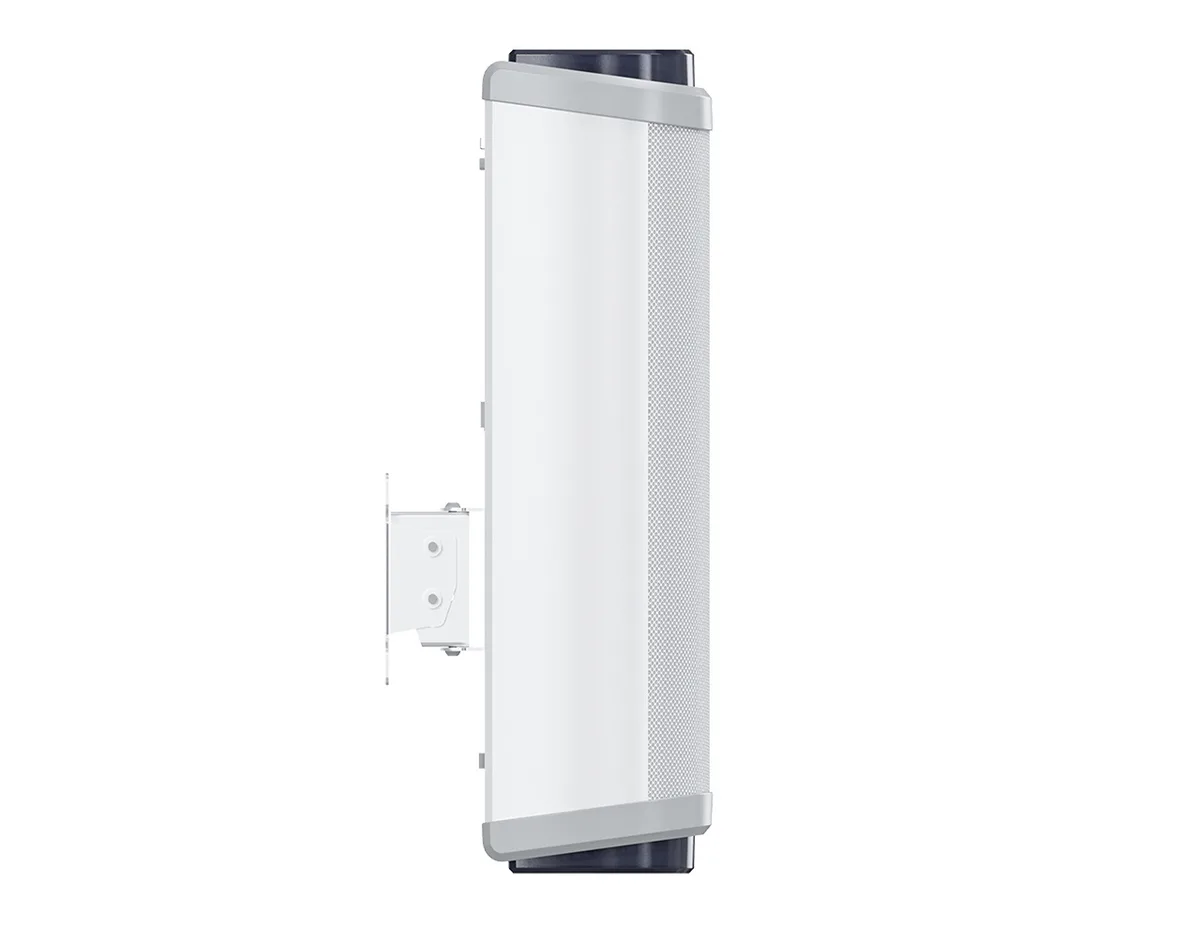

- Mounting bracket
- User guide
Specifications
Audio & wireless
| Built-in modules | IR sensor, speaker units |
|---|---|
| Speaker units | 2 × 4" |
| Infrared sensing diode | 24x Ultra-wide-angle multi-array diode |
| Infrared channels | 2x IR Microphones and 1x IR wireless presenter |
| Frequency response | 50 Hz–20 kHz(±3 dB) |
Power & charging
| Rated power | (8Ω) 30 W |
|---|
Connectivity & control
| Inputs & outputs | 1x RJ45 socket(Link/Input) 1x RJ45 socket (Link/Output) 1 set speaker terminal |
|---|
Coverage & installation
| Working area | R 26m(Unobstructed Distance) |
|---|
Physical
| Dimensions | 147.3(L) × 149.7(W) × 475(H) |
|---|---|
| Housing material | Aluminum alloy |
Applications
Planning a classroom or campus project?
Share your floor plan and room schedule — we will recommend microphone coverage, speaker placement and kit configuration.
Frequently Asked Questions
Which rooms is the SP-IR234 designed for?
The SP-IR234 is typically installed in classroom, lecture hall, training room, hybrid learning. Room size, ceiling height and speaker layout determine the final configuration — send us a floor plan and our team will recommend a layout.
How many infrared channels does the SP-IR234 support?
The SP-IR234 offers 2 selectable infrared channels. Several microphones can operate in the same room on separate channels; match each microphone and receiver to the same channel to avoid cross-talk.
What coverage does the SP-IR234 provide?
The rated coverage is R 26m(Unobstructed Distance). Infrared coverage depends on sensor placement and room geometry; an expansion sensor can be added where the room has shadowed areas.
What certifications and warranty are available for the SP-IR234?
Seekika Audio supplies CE, RoHS and FCC compliance documentation for its classroom audio products. Classroom audio products carry a standard 2-year warranty against manufacturing defects, with extended coverage available on project orders.
