PAS8 All-in-One Infrared Active Speaker
A solid-wood active speaker with a built-in infrared receiver, dual wireless channels and 2 × 40 W amplification. Its 6.5-inch driver and larger cabinet are intended for lecture rooms and teaching spaces that need more acoustic output than a compact soundfield bar.
- Built-in Class D amplifier, infrared receiver and sensor array — no separate receiver box.
- Dual infrared channels for two microphones.
- 2 × 40 W output with a 6.5-inch speaker unit in a 12-layer solid-wood cabinet.
Overview
Key features
- Built-in Class D amplifier, infrared receiver and sensor array — no separate receiver box.
- Dual infrared channels for two microphones.
- 2 × 40 W output with a 6.5-inch speaker unit in a 12-layer solid-wood cabinet.
- RJ45 port supports up to two external infrared sensors for extended coverage.
- RCA line input, microphone input and RCA line output for connection to classroom AV.
- Feedback suppression, DSP tone adjustment and 100 dB dynamic range.
The system is part of the Seekika Audio infrared range and can be paired with pendant, handheld and presenter microphones, plus matching charging hardware.
The system is supplied with mounting hardware and can be specified with pendant or handheld microphones. Contact Seekika Audio for room sizing and installation support.
What’s in the box
- PAS8 active speaker
- Power cord
- Mounting hardware
- Installation and user guide
Specifications
Audio & wireless
| Built-in modules | Class D Digital Amplifier, IR Receiver&Sensors |
|---|---|
| Speaker unit | 6.5" × 1 |
| Built-in IR sensors | 1 |
| Infrared channels | Dual-Channels |
| Frequency response | 75 Hz-15 kHz±3 dB |
| THD | <0.05% |
| Signal-to-noise ratio | LINE 70 dB (LINE), IR MIC 100 dB |
| Dynamic range | 100 dB |
| Frequency stability | ±0.005%(-10℃-40℃) |
Power & charging
| Rated power | ≥Max2 × 40 W@ 8 Ω |
|---|---|
| Input sensitivity | 1.5 mV(MIC); 150 mV (LINE) |
| Input impedance | 2KΩ(MIC); 47Ω(LINE) |
Connectivity & control

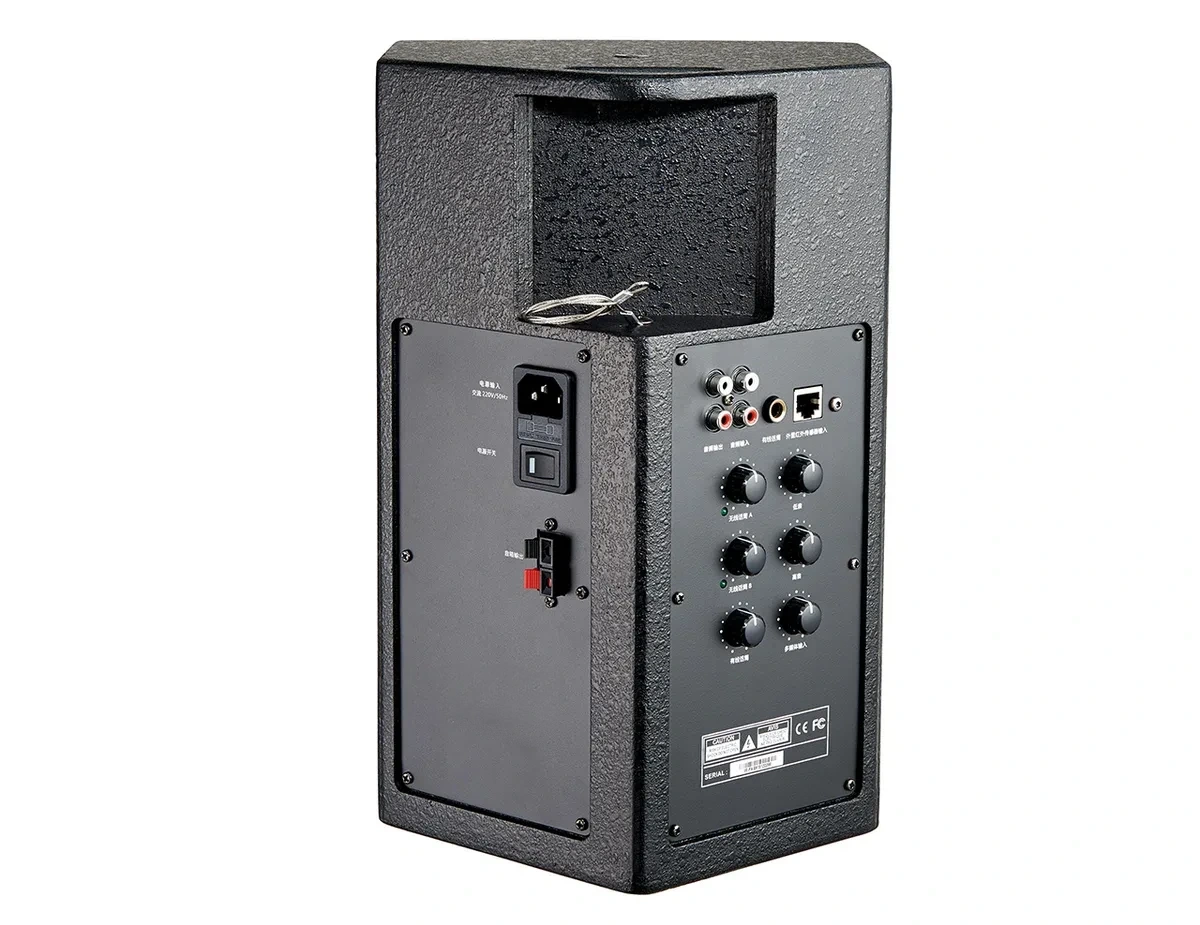

| Inputs | 1 × RJ45(can connect 2 infrared sensors); 1 × RCA Audio In ; 1 × MIC In; |
|---|---|
| Outputs | 1 × Speaker Out ; 1 × RCA Audio Out |
Coverage & installation
| Working area | Up to 100 m² |
|---|
Physical
| Housing material | 12-Layers Solid Wood |
|---|
Applications
Planning a classroom or campus project?
Share your floor plan and room schedule — we will recommend microphone coverage, speaker placement and kit configuration.
Frequently Asked Questions
Which rooms is the PAS8 designed for?
The PAS8 is typically installed in lecture hall, auditorium, large classroom, training room. Room size, ceiling height and speaker layout determine the final configuration — send us a floor plan and our team will recommend a layout.
How many infrared channels does the PAS8 support?
The PAS8 supports Dual-Channels. Match each microphone and receiver to the same channel to avoid cross-talk.
What coverage does the PAS8 provide?
The rated coverage is Up to 100 m². Infrared coverage depends on sensor placement and room geometry; an expansion sensor can be added where the room has shadowed areas.
What certifications and warranty are available for the PAS8?
Seekika Audio supplies CE, RoHS and FCC compliance documentation for its classroom audio products. Classroom audio products carry a standard 2-year warranty against manufacturing defects, with extended coverage available on project orders.
- OEM / ODM customization
- CE, RoHS & FCC documentation
- System layout and commissioning support
- Reply within one business day
