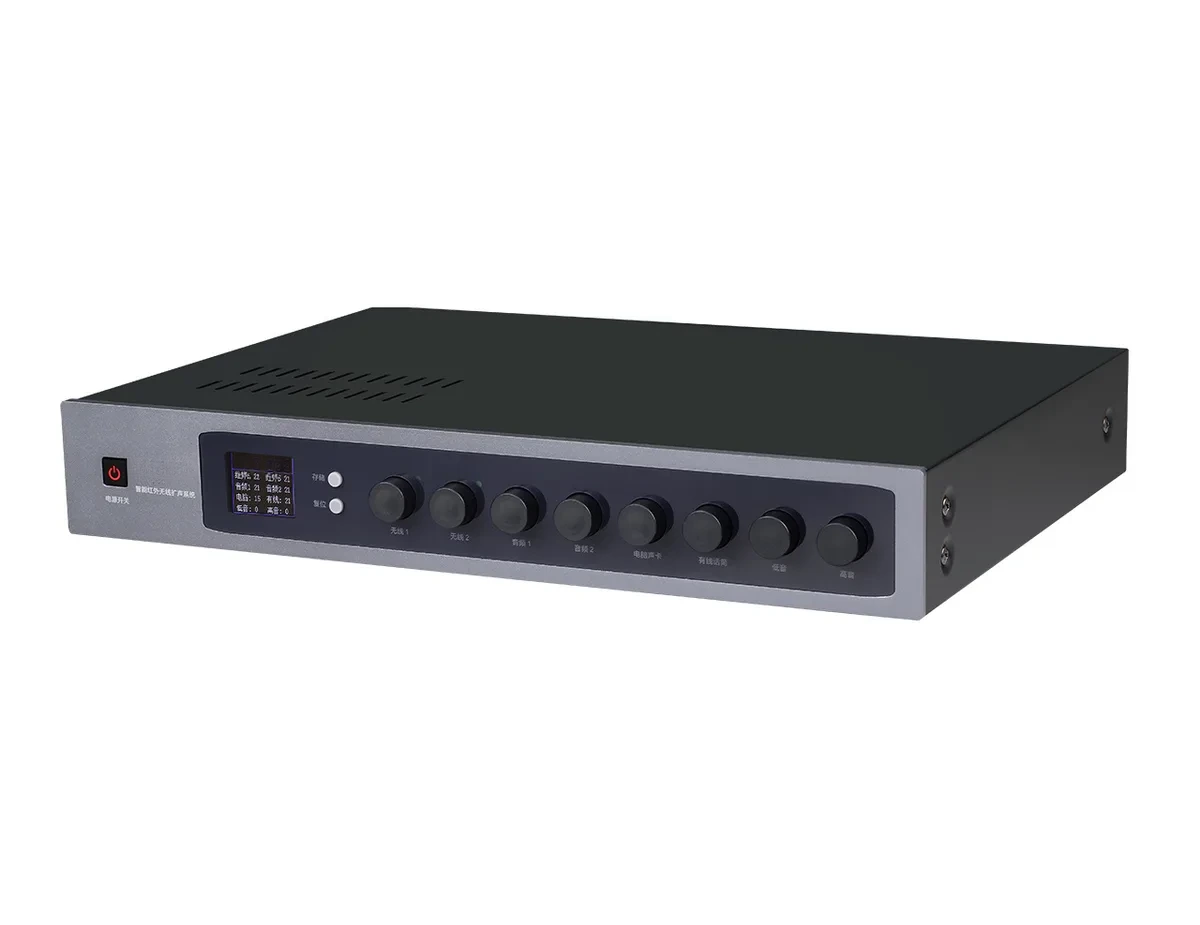

DW-306 Four-Zone Infrared Wireless Microphone Amplifier
A four-zone infrared amplifier delivering 4 × 70 W to as many as eight speakers. It is intended for large classrooms and university lecture theatres up to 400 m², with built-in USB audio and camera inputs.
- Three infrared channels for two microphones and one presenter remote.
- 4 × 70 W at 8 Ω (4 × 130 W at 4 Ω), with eight speaker outputs.
- Covers classrooms and lecture theatres up to 400 m².
Overview
Key features
- Three infrared channels for two microphones and one presenter remote.
- 4 × 70 W at 8 Ω (4 × 130 W at 4 Ω), with eight speaker outputs.
- Covers classrooms and lecture theatres up to 400 m².
- Built-in IR sensors can be integrated into loudspeakers to simplify cabling.
- USB digital sound card, USB camera input and 48 V phantom-power XLR input.
- Two RJ45 sensor ports support up to four remote infrared sensors.
The DW-306 is a four-zone infrared amplifier delivering 4 × 70 W to as many as eight speakers. It is intended for large classrooms and university lecture theatres up to 400 m², with built-in USB audio and camera inputs.
Three infrared channels support two microphones and one presenter remote. Contact Seekika Audio for zone layout and speaker configuration.
What’s in the box
- DW-306 amplifier
- Power cord
- Rack-mount hardware
- User guide
Specifications
Audio & wireless
| Infrared channels | 3 channels |
|---|---|
| Selectable channels | 3 |
| Frequency response | 50 Hz–20 kHz ±3 dB |
| THD | <0.05% |
| Signal-to-noise ratio | ≥78 dB (MIC1.2), ≥80 dB (LINE), ≥98 dB (IR MIC) |
| Dynamic range | 100 dB |
| Frequency stability | ±0.005%(-10℃-40℃) |
Power & charging
| Rated power | (8Ω) 4 × 70 W:(4Ω) 4 × 130 W |
|---|---|
| Input sensitivity | 20 mV(MIC1.2), 700 mV (LINE) |
| Input impedance | 22KΩ(MIC1.2), 390Ω(LINE) |
Connectivity & control

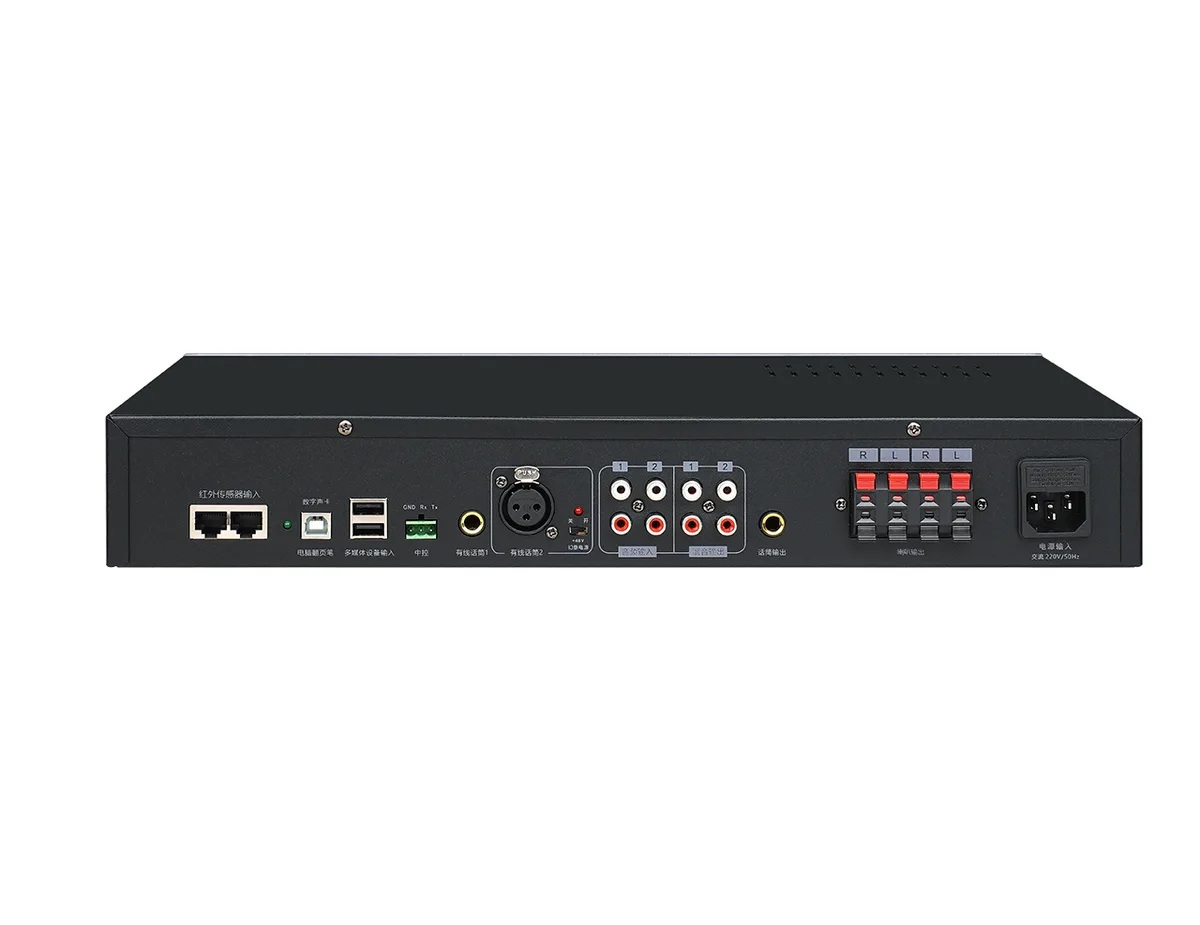

| Inputs | 2 × RJ45 ports(connect Max.4 IR sensors); 2 × audio inputs; 1 × 1/4"MIC in; 1 × (48 V phantom power)XLR input; 1 × USB digital sound card; 2 × USB multimedia interfaces; |
|---|---|
| Outputs | 2 × mixing audio output; 1 × Mic out; 8 sets of speaker ports |
Applications
Planning a classroom or campus project?
Share your floor plan and room schedule — we will recommend microphone coverage, speaker placement and kit configuration.
Frequently Asked Questions
Which rooms is the DW-306 designed for?
The DW-306 is typically installed in classroom, university lecture hall, training room, hybrid learning. Room size, ceiling height and speaker layout determine the final configuration — send us a floor plan and our team will recommend a layout.
How many infrared channels does the DW-306 support?
The DW-306 offers 3 selectable infrared channels. Several microphones can operate in the same room on separate channels; match each microphone and receiver to the same channel to avoid cross-talk.
What certifications and warranty are available for the DW-306?
Seekika Audio supplies CE, RoHS and FCC compliance documentation for its classroom audio products. Classroom audio products carry a standard 2-year warranty against manufacturing defects, with extended coverage available on project orders.
